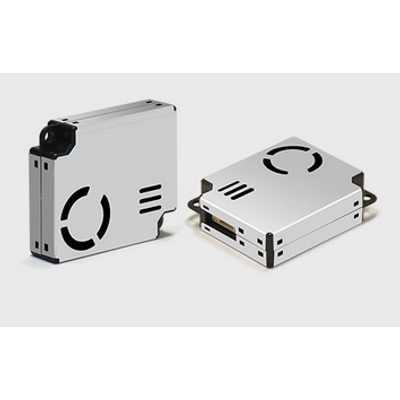

Winsen - Model ZH07 -Laser Dust Sensor
Laser Dust sensor module ZH07 is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good consistency and stability. It is easy to use, with UART & PWM output.
Most popular related searches
laser dust sensor
air quality monitoring system
dust sensor
HVAC ventilation system
air quality monitoring
indoor air quality
portable air quality monitoring
air monitoring system
smart building
air conditioner
- Air purifiers;
- HVAC, ventilation systems;
- Portable instrument;
- Air quality monitoring equipment;
- Air conditioner;
- Smart buildings and smart home.
- Good consistency
- Real time response
- Accurate data
- Low power consumption
- Minus resolution of particle diameter 0.3 µm
- Model : ZH07
- Detectable particle diameter range : 0.3-10μm
- Effective Range : 0-1000μg/m³
- Detection Interval : 1s
- PM2.5 Detection Accuracy : 0-100 μg/m³:±15μg/m³ 101-1000 μg /m³: ± 15% Reading (Test Condition: 25 ± 2 ?, 50 ± 10% RH,TSI8530, Cigarette, GBT18801-2015)
- Preheating Time : 30s
- Output : UART_TTL Output (3.3V level, default)
- PWMOutput (3.3V level, default)
- Working Voltage : 4.8V~5.5V(DC)
- Working Current : <120mA
- DormancyCurrent : <20mA
- Response Time : T90<30s
- Working Humidity : 0~80%RH(No Condensation)
- Working Tem. : -10~60?
- Storage Tem. : -30~70?
- Dimension : 48×40×12.5mm(L×W×H)
- Weight : <30g
- MTTF : Continuous > 10000H
