Lasertex - Model LS-10F? -Laser Encoder for CNC Machine Scale Replacement
The Laser Encoder LS-10F by Lasertex is an ultra-precise laser measuring device designed for submicron displacement measurements over distances ranging from 0 to 10 meters. Utilizing fiber optic beam guidance, it can measure across one to three axes with flexibility for various optical configurations. This device is engineered to replace mechanical scales in CNC machines, offering high precision and adaptability crucial for OEM applications. Laser interferometers are integrated to achieve the requisite precision and repeatability. The encoder is equipped with wireless microclimate monitoring sensors to automatically adjust for environmental variations influencing device performance. It maintains stability across a wide temperature spectrum and can be delivered with an optional independent calibration certificate. The LS-10F boasts 1 ppm accuracy, high-resolution readouts via USB and Bluetooth, and configurable digital interfaces, making it suitable for diverse application requirements. With support for Windows, MacOS, and Android, it offers an economic alternative compared to quality glass scales.

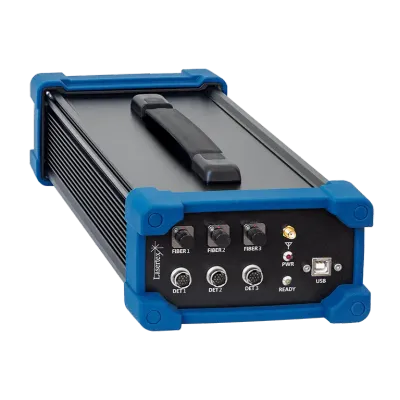

Laser Encoder LS-10F is an ultra accurate laser measuring device with fiber optic beam guidance designed for submicron measurements of displacements in the range of 0 to 10 meters. The device allows the simultaneous measurement of 1 to 3 measuring axes in different optical configurations, also modified on request.
The laser encoder is designed to be used in all OEM applications like in a steering loop instead of mechanical scale for CNC machine. The device is perfect if measurement accuracy and flexibility is required. Laser interferometers only are able to provide the required precision and repeatability.
Wireless microclimate monitoring sensor are available in standard set. These sensors are used for automatic real time correction of the microenvironmental factors that influence the device operation.
We guarantee that our laser heads operate stable in a wide temperature range for a great while. Oftentimes accuracy of the device has been verified by official certification laboratories. On request, the device can be delivered with an independent laboratory calibration certificate on your choice.
Highlights of the laser scale for CNC machine
- very high precision operation - 1 ppm accuracy
- high resolution readout available both on the USB and Bluetooth interface
- single, dual or triple axis operation from single laser source
- automatic compensation of environmental changes of laser wavelength
- monitoring of the device operation from PC computer
- configurable digital inputs and outputs for variety of OEM applications
- support for operation as a part of a calibration site
- customisable PC software
- wide choice of possible optical configurations
- available drivers for Windows, MacOS and Android operating systems
- price comparable to quality glass scales
