Model YVO4 -Laser Marker - 7W

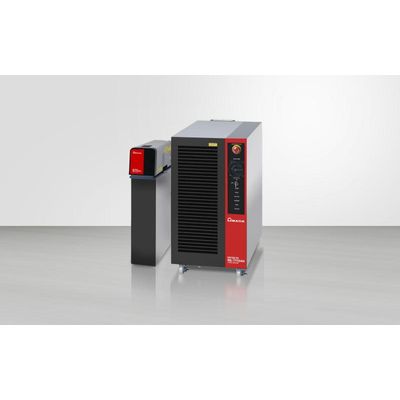

The ML-7112AH Laser marker is a plug-and-play system with a compact design that is able to mark metals, plastics and composite materials.
Most popular related searches
- Wavelength 1064 nm
- Pointer laser
- Q-SW frequency up to 200 kHz
- Marking characters, graphics, serial data, valuable data
- Marking data matrix codes & marking QR codes
- Lens: f160
- Expander: x5
Max. rated output: 7W
Power requirements: Single-phase, 100 V - 240 VAC (+6%/-10%), 50/60 Hz
Breaker rated current: 10A
Cooler: Air cooling
Environment: 5 to 35°C with humidity 40 - 85%
Weight: 40 kg
Safety class: Class 4 laser, pilot laser: Class 1
Legal approval: CE compliant
Lens: f160
Area: ? 100 mm
W.D.: 175 mm
