Komax ILC Bench Top - Model 30/20 BTS -Laser Wire Stripping System

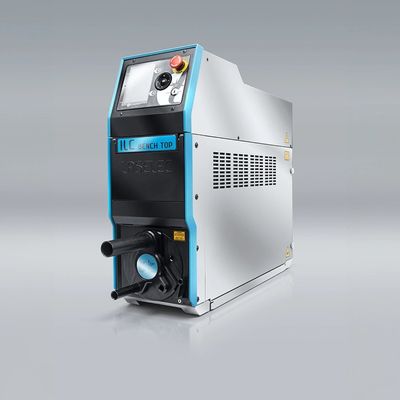

The versatile laser wire stripping system ILC Bench Top is designed for demanding applications, complex wire/cable constructions, and optimized for outer diameters ranging from 8 to 20 mm. The ILC Bench Top range offers versatile wire processing capabilities with its high-accuracy laser rotary cutting head. This advanced laser wire stripper can handle multiple wire gauges without compromising the cut quality. The programmed capabilities ensure fast and simple changes from one wire to another, even when using different gauges and constructions. One model in the ILC Bench Top range is the ILC-30/20 BTS. It features a 30-watt laser source and is optimized for wires with an outer diameter of 8 to 20 mm (0.3 to 0.8 in), with a maximum outer diameter of 1 to 20 mm (0.04 to 0.8 in). The ILC-30/20 BTS can perform circular cuts, straight slits, and spiral slits. These features make the ILC Bench Top an efficient solution for a wide range of wire processing applications.

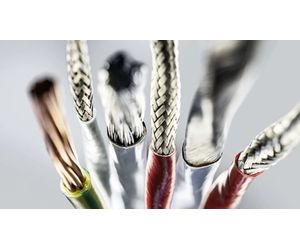

Processing a wide variety of wires

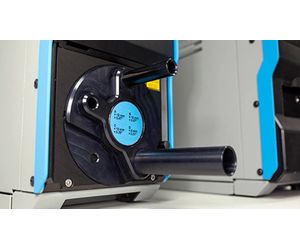

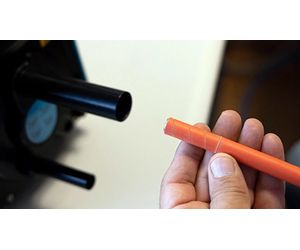

The ILC-30/20 BTS laser wire stripping system uses a high-power infrared laser to process a wide range of insulation materials, including coaxial cable dielectric and multilayer composite jackets.

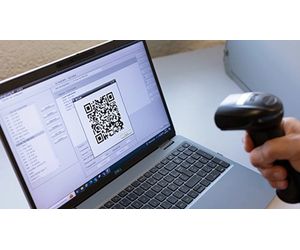

EasyCutting Config software simplifies setting adjustments and enables the creation of single-cut or multi-step programs. QR codes facilitate quick program transfer.
The longitudinal slit feature on the BTS version facilitates insulation removal on challenging and complex wires and cables. The ILC laser wire stripper is also capable of creating window strips.

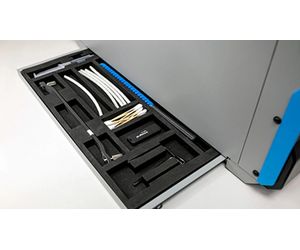

Maintenance is limited to regular cleaning operations. All necessary tools are provided and stored in the integrated maintenance tray.
Once loaded into the ILC Bench Top wire stripping machine, the programs can be selected manually or by scanning a barcode. Stripping starts automatically after the wire insertion.
ILC Bench Top 30/20 BTS
Metric
- Wire outer diameter min.: 4 mm
- Wire outer diameter max.: 20 mm
- Strip length min.: 0 mm
- Strip length max.: 115 mm
- Insulation material: PTFE, Polyimide, ETFE, X-ETFE, FEP, Fiberglass, etc.PVC only with suitable filtering and suction system
- Noise level: <75 dB
- Electrical connection: 90 – 230 VAC / 50-60 Hz
- Compressed-air connection: 6 bar
- Weight: 34 kg
- Dimensions/length: 560 mm
- Dimensions/width: 167 mm
- Dimensions/height: 470 mm
- Ambient temperature: 15 - 35 °C
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Laser: 30-watt infrared CO2 laser
- Laser cut type: Circular cut, axial slit, spiral strip, window
- Laser security: Class 1 laser: can be used on open workshop (no laser safety goggles required)
- Axial slit length: 65 mm
- Insertion length (distance between entry point and laser cut): Depending on the wire diameter
Imperial
- Wire outer diameter min.: 0.16 in
- Wire outer diameter max.: 0.8 in
- Strip length min.: 0 in
- Strip length max.: 4.5 in
- Insulation material: PTFE, Polyimide, ETFE, X-ETFE, FEP, Fiberglass, etc.PVC only with suitable filtering and suction system
- Noise level: <75 dB
- Electrical connection: 90 – 230 VAC / 50-60 Hz
- Compressed-air connection: 90 psi
- Weight: 75 lb
- Dimensions/length: 22 in
- Dimensions/width: 6.6 in
- Dimensions/height: 18.5 in
- Ambient temperature: 59 - 95 °F
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Laser: 30-watt infrared CO2 laser
- Laser cut type: Circular cut, axial slit, spiral strip, window
- Laser security: Class 1 laser: can be used on open workshop (no laser safety goggles required)
- Axial slit length: 2.25 in
- Insertion length (distance between entry point and laser cut): Depending on wire diameter
