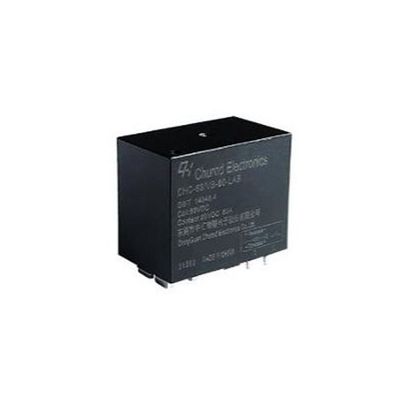

Model CHC-80L -Latching Contactor

PCB terminal，large current latching contactor, outline dimension (30mm×16mm×25mm) Double contact for arc extinguishing structure, Load is non-polarity Low contact voltage drop Maximum lightning strike surge current: 20KA Short-circuit resistance current 10KA, Meet Class 2 grade(With SPCD circuit breaker) Main contacts: normally open contacts；Auxiliary contacts: normally open contacts UL, CCC compliance RoHS compliance REACH SvHC compliance
