Model 924-1304 Series -Leak Detector Pressure Testing
The Leak Detector Low Pressure Air-Testing System has been successfully used for testing sewer pipe installations for over 40 years. This method of testing pipelines has proven to be the fastest, most economical, and accurate method of testing pipe. It allows you to perform tests as prescribed by ASTM C 828, C 924, and F 1417.

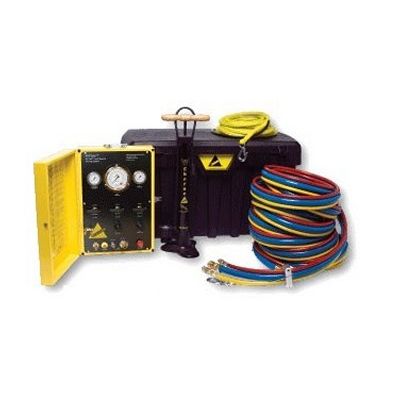

The Line Acceptance Kit is used to perform low pressure air tests (up to 10 psi) on newly installed sewer lines. The Line Acceptance Kit includes the control panel, hand pump, 50` triple hose, and a storage container. Not included in kit is an air compressor and pipe plugs.

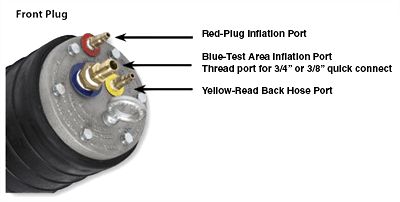

- Converts Municipal Style Muni-Ball® plugs to air test plugs
- Available for line acceptance and/or leak location tests
Equipped with:
- Colored discs coded to hose connections
- Conversion set up instructions

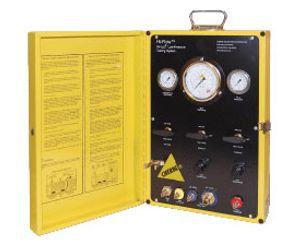

Panel includes gauges to monitor compressor pressure, plug pressure, and test pressure, all in a sturdy steel case with a durable powder-coat enamel finish. Panel also has regulators to control plug and test pressure.
Panel can be used with either 3/8" or 3/4" fill hose, accomplished by simply turning a valve. Panel is designed to work with air compressors fitted with either crow`s foot or standard quick disconnect fittings

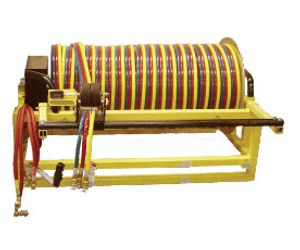

The triple hose reel is used to pull the tandem plug assembly through the sewer line. It`s designed to be mounted to the back of a pickup and features durable color-coded hose, a hose distance counter, a two way air motor and more. Cherne also offers an economical version of this reel that does not include the air motor or counter system.

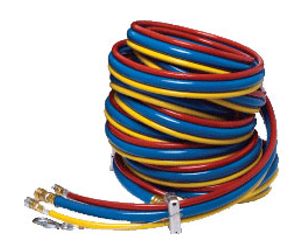

The 3/8" diameter hose assembly is used to connect the Leak Detector Panel to the front plug. Triple hose is color-coded, making connections easy to understand. Hose features locking quick disconnects for convenience and safety. Hose also includes strain relief to protect hose and connections from damage. Hi-Flow Triple Hose available with 3/4" blue test pressure hose for quick exhausting.

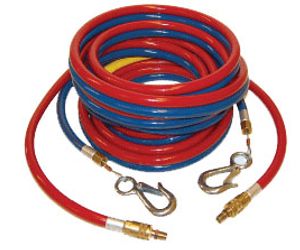

The interconnect hose is used to attach the front and back air test plugs when conducting a leak location test. This hose includes a cable for attaching to the pipe plugs to take strain off the hose during the leak location process.
