HydrofloModel Series Steam-to-Liquid -Leak Guard

SHARE

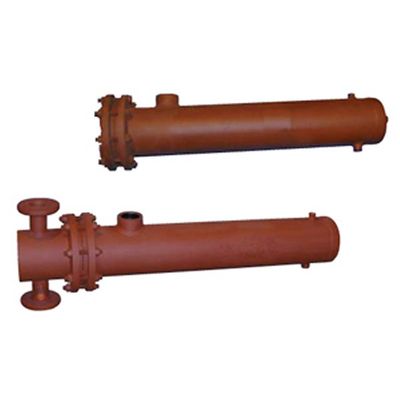

Leak Guard Series Double Wall Steam to Liquid Heat Exchangers are built in accordance with ASME Section VIII in a wide variety of materials, so you can choose just what you need for your application. Shells, heads, tubes, tube sheets, separators and tie rods are all available in optional materials. To help assure the high quality you expect from Taco, we do all fabrication in house.

  • NSF 372 Certified
  • Constructed in Accordance with ASME Section VIII 3/4" Double Wall Copper Enhanced Heating Surface
  • Available in 2-, 4- or 6-Pass Construction
  • National Board Registration
  • Computerized Selections
  • Tube Pressure Ratings: Standard 150 PSIG; Optional 400 PSIG
  • Shell Pressure Ratings: Standard 150 PSIG; Optional 250 PSUG
  • Test Pressure: 300 PSIG
  • Maximum Temperature: 375° F. Standard, 450° F. Optional.
