LeakMaster - Model 700 Series -Leak Tester

SHARE

It’s leak detection simplified. LeakMaster’s 700 series is not only extremely fast, it’s repeatable, and, best of all, it’s user friendly. Add the fact that the 700 series is configurable for pressure decay leak testing, mass flow leak testing, or differential pressure decay leak testing and you can be confident you have one of the most versatile precision air leak test instruments available.Optional Ethernet/IP modulefor seamless integration with Allen Bradley EtherNet/IP or other compatible devices, eliminates I/Owiring, reduces start-up time and hardware cost. Provides ultimate control and the ability to capturevaluable leak rate data for data collection systems, critical for today’s production environment.

Most popular related searches
leak detection instrument
mass flow
leak pressure test
leak pressure testing
mass flow testing
mass flow test
mass flow sensor
air leak detection
data acquisition system
flow testing

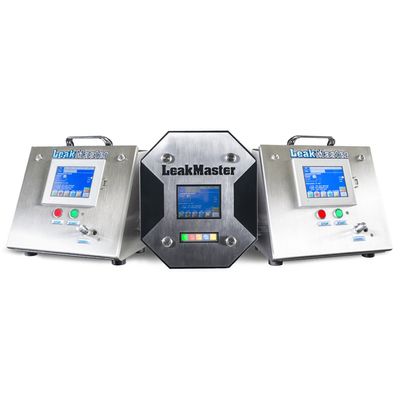

The LeakMaster 700 Series Benchtop configuration is the go-to configuration for labratory environments, medical leak testing, and manual leak test stations.

The LeakMaster 700 Series Machine Mount configuration is for grueling production environments and automated leak testing machines.

Run Screen

  • The large, bilingual, multi-channel display makes leak testing effortless.
  • All pass/fail and in-process information are clearly displayed for easy viewing.

Real-Time Graphing Screen

  • Eliminates guesswork when setting up a new process, improves cycle time.
  • Makes setting the proper test pressure, leak test times and limits a breeze

Set-Up Screen

  • The easy to understand layout reduces set-up time, builds confidence, and eliminates confusion.
  • The intuitive design gives unparalleled control, without multiple set-up screens.
  • All leak test timers and limits are clearly presented in their proper order.

Programmable Outputs Screen

  • Accessible time or condition based programmable outputs for tooling and simple automation
  • All I/O is clearly displayed for easy viewing
  • Proven control and monitoring of the leak tester and associated devices

Data Collection Screen

  • Built-in data collection with auto save for proven, effective data collection; without the hassle.
  • The information is saved as a CSV file for viewing in Microsoft Excel or other text viewers.

Real-Time Help Screen

  • The most advanced diagnostic tools to quickly identify and solve issues
  • Standard real-time screen capture function for global set-up and diagnostic assistance
  • Expert service and support staff

Leak testing is determining whether a product passes a specified leak limit. Leaks occur when a gas or liquid can escape a product caused by holes, cracks, insufficient seals, or permeable areas in a product due to defects in the manufacturing process. There are several different types of leak testing technologies available that can be implemented for specific applications. The chart below shows the different test types available for the 700 Series leak test instrument.

  • Pressure Decay
  • Vacuum Decay
  • Mass Flow
  • Differential Pressure
  • Occlusion
  • Metered Volume

Standard Optional Applicable Tester
Programs Per Channel 60 on Channel 1 15 on Channel 2 All 700 Series Testers
Number of Channels 1 2 700PD
Dual Pressure/Fast Fill No Yes All 700 Series Testers
Calibrated Leak Orifice 1 NIST Leak Per Channel   700PD, 700DP
Pressure Transducer/Resolution 0-150 PSIA / .00001 PSI (0-15 PSIA / .000002 PSI) 700PD
(0-45 PSIA / .00003 PSI)
DP Transducer/Resolution 0-1.45 PSI / .000001 PSI   700DP
Mass Flow Sensor/Resolution 0-1000 SCCM / .01 SCCM 0-6 LPM / .01 LPM 700MF
Operation Modes Pressure/Vacuum Decay Metered Volume 700PD, 700DP
Inputs (8) 24 VDC PNP/NPN   All 700 Series Testers
Outputs (8) 24 VDC PNP/ 5 Programmable   All 700 Series Testers
Communications Modbus RS485 Ethernet IP®, Profinet® All 700 Series Testers
Data Collection USB Flash, FTP   All 700 Series Testers

700PD = Pressure Decay Single Channel or Optional Dual Channel Testing
700DP = Differential Pressure Decay Single Channel Testing ONLY
700MF = Mass Flow Single Channel Testing ONLY
