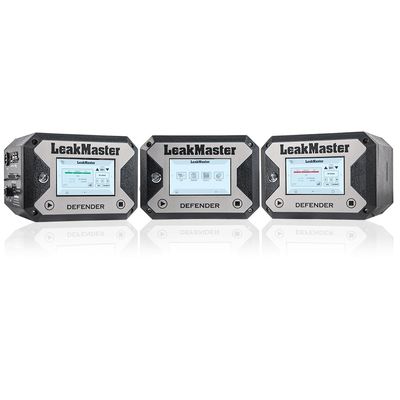

LeakMaster - Model Defender -Leak Testing System

SHARE

The Defender is LeakMaster’s latest Pressure Decay leak testing innovation specifically designed to reduce integration costs and improve repeatability. The Defender is ideal for a variety of pressure/vacuum decay leak testing applications. It’s compact design makes it ideal for applications with limited space. Standard Ethernet/IP module for seamless integration with Allen Bradley EtherNet/IP or other compatible devices, eliminates I/0 wiring and reduces start-up time and hardware cost. This instrument provides ultimate control and the ability to capture valuable leak rate data for data collection systems critical for today’s production environment.

Most popular related searches
leak detection instrument
data acquisition system
vacuum leak testing
differential pressure flow meter
leak pressure test
leak pressure testing
mass flow
pressure regulator
pressure testing system
mass flow metering

Run Screen

  • The 5″ touchscreen display makes leak testing effortless.
  • All pass/fail and in-process information are clearly displayed for easy viewing.

Setup Screen

  • The easy to understand layout reduces set -up time, builds confidence, and eliminates confusion.
  • The intuitive design gives unparalleled control, without multiple set-up screens.
  • All leak timers and limits are clearly presented in their proper order.

Results Screen

  • Built-in data collection with auto save for proven, effective data collection; without hassle.
  • The information is saved as a CSV file for viewing in Microsoft Excel or other text viewers.

Leak testing is determining whether a product passes a specified leak limit. Leaks occur when a gas or liquid can escape a product caused by holes, cracks, insufficient seals, or permeable areas in a product due to defects in the manufacturing process. There are several different types of leak testing technologies available that can be implemented for specific applications. The chart below shows the different test types available for the Defender leak test instrument.

  • Pressure Decay
  • Vacuum Decay
  • Mass Flow
  • Differential Pressure
  • Occlusion
  • Metered Volume
Standard
 Optional
Programs Per Channel 10
Number of Channels 1
Test Type Pressure Decay/Occlusion Vacuum Decay
Inputs (16) 24VDC PNP
Outputs (16) 24VDC PNP
Communications Digital IO, Ethernet IP® Profinet
Data Collection USB Flash, FTP MasterCloud™
Pressure Regulator 2-100 PSIG 0-2, .5-30, 1-60 PSI
