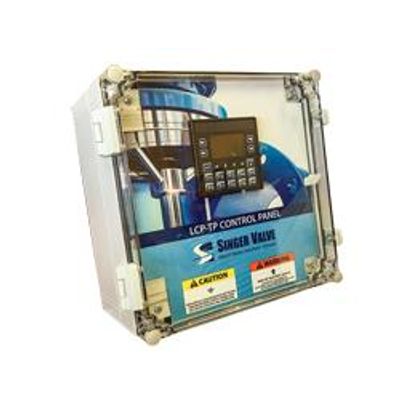

Singer Valve - Model LCP-TP -Level Control Panel

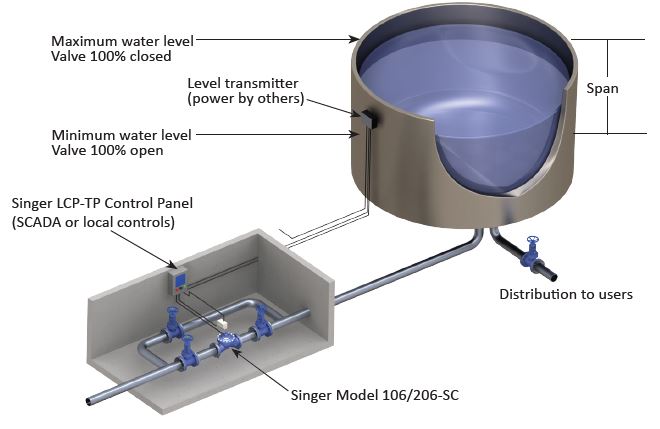

The LCP-TP Level Controller is a single process level controller designed to complement Singer Valve’s Single Solenoid Operated/Override Control Valves and 4-20mA level sensor or High/Low Level Switches. This combination package is ideal for filling any kind of tank that requires filling to a level setpoint, drawing down the tank level to a secondary setpoint and activating the fill cycle again to ensure tank turnover.
Most popular related searches
level controller
control valve
hazardous area
level switch
level sensor
electrical conductivity
polycarbonate enclosure
solenoid controlled valve
tank level control
load sensor
The LCP-TP offers quick and easy configuration, which allows the Controller to read and compare the level 4 to 20 mA signal to the desired setpoint. The LCP-TP then opens or closes the Singer Valve control valve to achieve the desired level setpoint.
- Compatibility with remote SCADA Modbus, Hardwired 4 to 20 mA or local set-point adjustment
- Simplified ON/OFF level controller for 4-20mA sensor or high/low level switch implementation
- Selectable input controls and output alarms
- IP 66, 67 NEMA 4X rated panel
- Black and white interactive button display
- Level control
- Data logging
- Display:
- Black & White interactive display (standard)
- 3.5" 20-key keypad and numeric entry capability (128x64)
- Input Power Supply:
- 120VAC, 60 Hz, Typical Load: 0.5A, Full Load: 5A Max
- 240VAC, 50 Hz, Typical Load: 0.3A, Full Load: 5A Max
- 24VDC, Typical Load: 1A, Full Load: 5A Max
- Sensor DC Supply:
- AC Model: 24VDC, 2.5A Max
- DC Model: Isolated 24VDC, 1A Max
- Operating Ambient: 0 to +50ºC (32 to 122 ºF)
- Storage Temperature: -10 to +60ºC (14 to 140 ºF)
- Relative Humidity: 5 to 90% RH non-condensing
- Enclosure Material: Polycarbonate (standard)
- Enclosure Rating:
- NEMA Type 4, 4X, 12, 13
- IEC 60529, IP66, IP67
- Safety Standard: UL 508A Industrial Control Panel
- Installation Location: Not suitable for use in hazardous locations or for use with devices that are installed in hazardous locations
- Atmospheres: Not suitable for use above 2000m or in explosive or corrosive atmospheres. Electrically conductive
- pollution must be excluded from the cabinet in which this controller is mounted
- Digital Input Rating: 24VDC, 2.4mA Max
- Alarm Output Rating: min: 24VDC, 1.5A Max
- (Dry Contacts) max: 250VAC, 1.5A Max
- Solenoid Relay Output
- Rating: 120VAC, 1A Max
- (Solid State Relays) 240VAC, 1A Max
- 24VDC, 1.5A Max
- Analog Inputs
- Process Variable: 4-20mA. All configurable between limits
- Remote Setpoint: 4-20mA. All configurable between limits
- Analog Output
- Process Variable
- Retransmission: 4-20mA. All configurable between limits
- Resolution: 12 bits
- Clock Accuracy: +/- Seven Minutes/Month at 20ºC
- Datalogging: Yes
- Removable Media: MicroSD card (not included)
- Communication: Modbus over Serial
- Dimensions Enclosure: 11.34" (288mm) Length x 11.34" (288mm) Width x 6.81" (173mm) Height
