Pump Vision - Model TS1040 -Level Controller

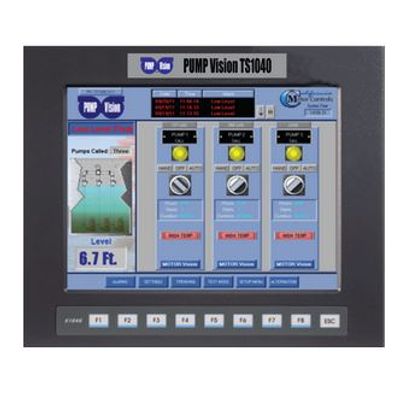

Our PUMP Vision TS1040 is a 10.4” color touch screen level controller. And just like all of our other PUMP Vision products, it is super easy to configure for numerous different applications. The number of screens are greatly reduced compared with our smaller screen controllers as more information can be displayed in an easily understood arrangement. This makes the TS1040 the easiest to use controller yet!
- 1 to 4 pumps
- VFD, FVNR, or RVSS
- Sequencing. Simplex, duplex, triplex, quadplex.
- Pump up(fill) andpump down(empty) modes
- VFDs supported through Modbusinclude Schneider, ABB, Danfoss, , Trane, and more.
- 4-20 mA Transducer input.User scalable and offset, can be inverted if distance sensing ultrasonic transducer is used.
- Trending. All process points can be view with onscreen graphs.
The trend screen shows pump speed, number of pumps running, level, and VFD speed when VFDs are installed.
Data loggingon board and on SD card of all station faults, run start and stop times and durations, all VFD vaults are logged with specific fault conditions, all MOTOR Vision faults, and process variables.
Communications.Modbus RTU, Modbus IP, Ethernet IP, BACnet, LonWorks, Metasys, and other BAS and SCADA protocols are supported, some are optional.
Internet and Email. Remote access to screen controls with Internet connection. Up to 20 separate alarm conditions are email or texted to up to 4 recipients.
Alarm configuration screen. Each alarm channel can be individually configured as needed for the application.
SCADA Vision Station Dashboard
SCADA Vision is the pump station monitoring SCADA software that provides an overview of your entire group
of pump stations with complete historical information about every condition signaled by the pump station RTU. Read More
The Main Dashboard provides a wealth of information on one screen and in a very easy to understand format. Included on the screen is:
- Digital and graphical display of level
- Sequencer status
- Alarm message bar
- Alarm log with last 3 alarms displayed. Scroll buttons to view previous up to 1000 total
A dashboard is provided for each pump with detailed information about the pump operation and allowing manual operation of the pump. In fact, with the necessary VFD controls and data available, door mounted VFD HMIs are not necessary. Included on the screen is:
Pump status
- “Soft” HAND-OFF-AUTO selector switch
- Total run hours
- Number of starts
- Run duraton (of last cycle, present cycle if running)
- If enabled
- Seal failure/Moisture alarm indicator
- High temperature alarm indicator
- MOTOR Vision alarm indicator and access button
With VFD
- Manual speed control (%)
- Drive speed reference (%)
- Drive speed feedback (Hz)
- kW
- Drive fault status—actual fault condition is indicated and logged
