Model Type ABS Sanimax -Lifting Station
FromSulzer Ltd.

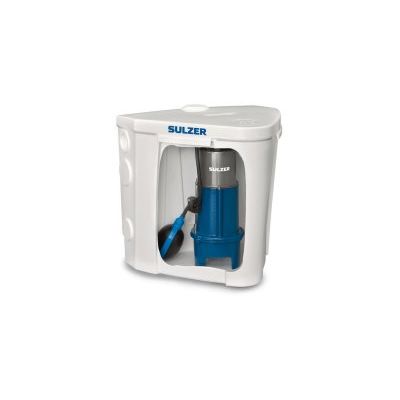

The Sanimax is a complete wastewater pumping unit for floor-level installation featuring a submersible pump from the Robusta or MF ranges. Use it for to pump fecal-free domestic and commercial wastewater from buildings and areas below the sewer level in accordance with EN 12050-2. Suitable for the pumping of fecal-free wastewater only. Robust synthetic (PE) collection tank of compact design. Easy to transport, with simple discharge line connection.
Most popular related searches
lift station
non-return valve
wastewater pump system
washing system
wastewater pumping
pump system
sewer level
level controller
wastewater pump
odor filter
- Supplied as standard with pump, automatic level control and non-return valve
- Compact dimensions allow passage through a standard door opening
- Alarm float switch available as accessory
- Seven ports (5 x 40 mm, 2 x 50 mm), ready-prepared with seals, can be used for inflow, discharge, power cable, or connection to a washing machine via a flexible hose (¾” adaptor supplied)
- Pumping of fecal-free wastewater
- Sinks
- Showers and bathtubs
- Domestic washing machines
- Domestic dishwashers, showers, and bathtubs
- Ready-for-use, plug-in unit with EURO plug
- Compact triangular design optimizes space beneath a wash hand basin
- Odor-tight lid with odor lock and venting, including charcoal odor filter and overflow protection
- Solids handling up to 10 mm for Robusta, 20 mm for MF 154, and 30 mm for MF 324
- Sanimax R 202C for aggressive liquids. Users should check the suitability of the materials for the particular application
- Capacity: 14 m³/h (60 US gpm)
- Head: 11 m (36 ft)
- Temperatures: 40°C (maximum 60° for five minutes)
- Discharge sizes *: DN 40
- Maximum speed of rotation *: 2,900 min-1
*= optional
