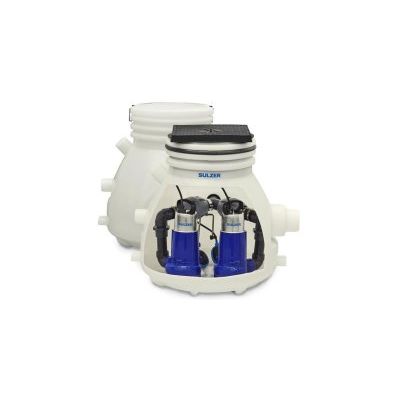

Model Type ABS Sanisett 1 and 2 -Lifting Station

• The Sanisett is suitable only for the pumping of fecal-free wastewater such as the discharge from washing machines, sinks, dishwashers, showers, and bathtubs
• Compact, robust synthetic (PE) collection tank
• Easy to transport, with simple discharge line connection
• Twin pumping station unit for applications where pumping cannot be interrupted

• Globular shape for extra strength, with PP-30GF manhole cover featuring floor run-off and optional odor lock with aeration and venting
• Sanisett 1 for one KS version pump (Coronada, IP, Piranha, MF) or pump with built-in level control (Robusta)
• Sanisett 2 for two non-KS pumps. Separate KS level control system, with support bracket for discharge line junction piece and KS float switches
• Easily transported and fitted. Compact dimensions allow passage through a standard door opening
• Kit available as an accessory for sealing top of tank to damp proof course
• Universally adjustable in height and can be swiveled: easy to align with floor levels and tiling patterns, irrespective of the inflow or direction of the discharge lines

• Pumping of fecal-free wastewater
• Washing machines, sinks, dishwashers, showers, and bathtubs
• Also suitable for the pumping of sewage containing fecal matter outside of areas covered by EN when installed using Piranha pump(s)

• The required pump must be ordered separately and fitted. The following pumps may be used with the Sanisett: Robusta 200 WTS , Robusta 200C WTS, Robusta 200 WKS, Coronada 250 WKS, IP 900 WKS, IP 900 DKS, Piranha 08 WKS, Piranha 09 WKS, MF 154WKS -804DKS
• Suitable for use as a floor drain. Alternatively a stainless steel insert is available as an accessory for fitting into the manhole cover to close and seal the run-off vent
• Includes plastic cover for protection of the floor grating during installation work
• Two inflow ports (DN 100/150) at 90º offset for DIN push-on connection. One DN 70 port for venting and use as a cable duct (supplied as standard with plug/cable inlet seal)

• Temperatures: 40°C (maximum 60° for five minutes)
• Discharge sizes *: DN 50 with 63 mm Plasson adaptor

*= optional
