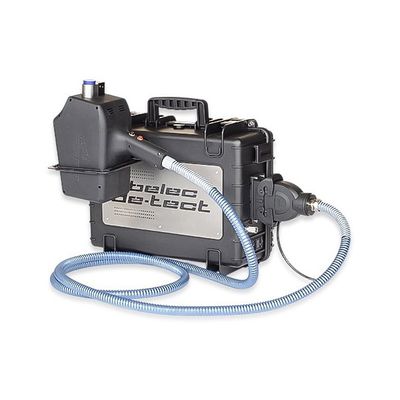

Belec - Model De-Tect -Lightweight Portable Spectrometer
The most lightweight portable spectrometer, yet the most accurate. Again Belec – as the inventor of mobile spectroscopy- sets new modern standards for anyone who expects ultimate accuracy and precision in the most compact spark OES. The new Belec de-tect, combined with the newly designed FUSION PROBE, provides everything you want. With the weight of only 12 kg /27lb it is easy to carry it to almost any location or use the option of a 10m/32ft cable. The Fusion Probe with the integrated touchscreen allows full access to all functions.
Most popular related searches
- Longest umbilical on the market
- Temperature stabilized - Ready for any climate!
- Probe read out screen - highest convenience
- Longest umbilical on the market, practically any length
- easy access to pipe racks
- Low argon consumption
- low operation costs
- Probe read out screen
- highest convenience
- Robust optics/probe design, All the analysis takes place in the probe (no need for fiber replacement due to aging
- Easy to use UI
- Post analytical calculations done simply ( Add/Edit CE or other formulas)
- Integrated, Customizable grades library
- Easy standardization/types
- Temperature stabilized
- Ready for any climate!
- Highest level of accuracy and precision ( incl. UV-elements C, P, S
- and yes, even trace elements)
- PMI/Field ready
- Adapters for virtually all shapes and sizes
- Light weight Aluminum aircraft grade reinforced plastic housing,
- moisture proof
- Near maintenance free
Optic
- Double-spectrometer with Flat-field CCD
Detectors, argon flushed for UV Elements
(C, S, P), integrated in Fusion-Probe
Probe: - Wavelength range: 170 – 420 nm
- MCDC System (Multimatrix-Channel Drift Correction)
Sparking Probes
- Fusion probe with integrated optics and
5” touchscreen - Low argon consumption
- near maintenance free
- No-wear electrode
- Adapter for wires, tubes etc.
Source
- Max. 400 Hz frequency
- Unipolar discharge
Dimensions
- Width 19.7 in. (500 mm)
- Height 14.1 in. (360 mm)
- Depth 7.1 in. (180 mm)
Weight
- Weight main unit: 27.5 lb. (12,5 kg)
- Probe: 5.3 lb (2,4 kg)
Power Supply
- 230 V/50 Hz or 115 V/60 Hz
- Optional battery
- 11 W/Stand-by, 670 W/Analysis
