Supercombinata - Model SC1 -Line Boring Machine
FromElsa s.r.l.

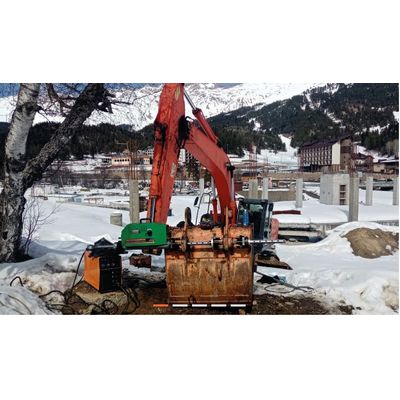

The Supercombinata SC1, with its standard equipment, is suitable to perform line boring and internal and external overlay welding within a working range from Ø 42 mm to Ø 400 mm (also blind holes). It’s suitable for drilling and tapping. By means of extra kits, it is suitable to perform external turning, facing of orthogonal planes and creation of circlips grooves, threading. With additional accessories, the Supercombinata can be adapted to many different needs of our customers.
Most popular related searches
DIAMETERS
- Boring bar diameter: ø 40 x 2200 mm
- Line boring: ø 42 - 400 mm
- External turning: Extra kit
- Internal welding: ø 42 – 400 mm
- External welding: ø 42 – 400 mm
- Drilling: Suitable
- Tapping: Suitable
- Threading: Extra kit
- Facing of orthogonal planes: Extra kit
ROTATIONMOTOR
- AC motor: Single phase
- Power at rated speed: 1800 W
- Gearbox: 4-speed
- Output torque at the bar: Up to 400 Nm with 95 rpm
- FEED MOTOR
- Gear motor: DC
- Power at rated speed: 90 W
- Max Speed: 11 rpm
- Feed system: Electromechanical
- Feed: Manual/Automatic
WELDING TECHNOLOGY
- Spiral: Continuous with variable step
- Welding machine: Compatible with MIG/MAG welder with EURO connector
- LONGITUDINAL STROKE
- Unlimited: With 350 mm pitch
ELECTRONIC CONTROL PANEL
- Voltage: 230 V (50 Hz)
- Main switch: Available
- Emergency switch: Available
- Inverter feed: RH/LH
- Inverter rotation: CW/CCW
- Speed regulator: Rotation/Feed
- Electrical absorption: 2000 W
- Control panel 110/120 V: Upon request
- Digital control panel: Upon request
DIMENSIONS
- Length: 680 mm
- Width: 240 mm
- Height: 380 mm
- Weight central unit: 36 Kg
- DIMENSIONS
- Qty 1 - Main unit
- Qty 1 - Boring machine stand
- Qty 1 - Electronic control panel
- Qty 1 - Control panel holder
- Qty 1 - Cable control panel/machine
- Qty 1 - Power cable
- Qty 1 - Boring bar ø 40x2200 mm
- Qty 1 - Boring bar ø 40x1100 mm
- Qty 1 - Boring bar extension 520 mm
- Qty 1 - Pivot
- Qty 1 - Tool holder for boring d. 100-400 mm
- Qty 1 - Special tool holder LH ø 12x40 mm
- Qty 1 - Tool holder LH ø 12x40 mm
- Qty 1 - Tool holder LH ø 12x60 mm
- Qty 1 - Tool holder RH ø 12x100 mm
- Qty 1 - Box with 10 cutting inserts
- Qty 2 - Main bar support
- Qty 2 - Additional support
- Qty 12 - Bracket for flanges
- Qty 1 - Telescopic shaft for welding
- Qty 5 - Diffusor extension 35 mm
- Qty 1 - Diffusor extension 100 mm
- Qty 4 - Short gas nozzle
- Qty 4 - Long gas nozzle
- Qty 5 - Short contact tip ø 0,8 mm wire
- Qty 5 - Long contact tip ø 0,8 mm wire
- Qty 1 - O-ring for welding shaft 100x5 mm
- Qty 1 - Terminal lance for external welding
- Qty 1 - Centring system for through holes
- Qty 1 - Centring system for blind holes
- Qty 1 - Telescopic gauge up to ø 400 mm
- Qty 1 - Dial gauge
- Qty 1 - Dial gauge support
- Qty 1 - Set of wrenches
- Qty 1 - Screws and bolts
