Supercombinata - Model SC3 -Line Boring Machine
FromElsa s.r.l.

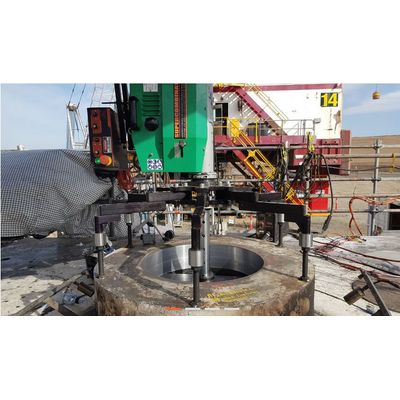

The Supercombinata SC3, with its standard equipment, is suitable to perform line boring and internal and external overlay welding within a working range from Ø 62 mm to Ø 800 mm (also blind holes). It’s suitable for drilling and tapping. By means of extra kits, it is suitable to perform external turning, facing of orthogonal planes and creation of circlips grooves, threading. With additional accessories, the Supercombinata can be adapted to many different needs of our customers.
Most popular related searches
DIAMETERS
- Boring bar diameter: ø 60 x 2200 mm
- Line boring: ø 62 – 800 mm
- External turning: Extra kit
- Internal welding: ø 42 – 800 mm
- External welding: ø 42 – 600 mm
- Drilling: Optional accessories
- Tapping: Optional accessories
- Threading: Extra kit
- Facing of orthogonal planes: Extra kit
ROTATION MOTOR
- AC motor: Single phase
- Power at rated speed: 2300 W
- Output torque at the bar: 902 Nm with 55 rpm
- 1° speed: max 55 rpm (420 Nm)
- 2° speed: max 85 rpm (235 Nm)
- 3° speed: max 240 rpm (85 Nm)
- 4° speed: max 375 rpm (55 Nm)
FEED MOTOR
- Gear motor: DC
- Power at rated speed: 90 W
- Max. speed: 11 rpm
- Feed system: Electromechanical
- Feed: Manual/Automatic
WELDING TECHNOLOGY
- Spiral: Continuous with variable step
- Welding machine: Compatible with MIG/MAG welder with EURO connector
LONGITUDINAL STROKE
- Unlimited: With 350 mm pitch
ELECTRONIC CONTROL PANEL
- Voltage: 230 V (50 Hz)
- Main switch: Available
- Emergency switch: Available
- Inverter feed: RH/LH
- Inverter rotation: CW/CCW
- Speed regulator: Rotation/Feed
- Electrical absorption: 2300 W
- Control panel 110/120 V: Upon request
- Digital control panel: Upon request
DIMENSIONS
- Length: 680 mm
- Width: 300 mm
- Height: 390 mm
- Weight central unit: 39 kg
- Qty 1 - Main unit
- Qty 1 - Boring machine stand
- Qty 1 - Electronic control panel
- Qty 1 - Control panel holder
- Qty 1 - Cable control panel/machine
- Qty 1 - Power cable
- Qty 1 - Boring bar ø 60x2200 mm
- Qty 1 - Boring bar extension 520 mm
- Qty 2 - Pivot
- Qty 1 - Tool holder for boring d. 120-250 mm
- Qty 1 - Tool holder for boring d. 250-800 mm
- Qty 1 - Tool holder LH ø 12x50 mm
- Qty 1 - Special tool holder LH ø 12x60 mm
- Qty 1 - Tool holder LH ø 12x60 mm
- Qty 1 - Tool holder LH ø 12x80 mm
- Qty 1 - Tool holder RH ø 12x100 mm
- Qty 1 - Box with 10 cutting inserts
- Qty 1 - Adjusting plug for tool holder
- Qty 2 - Main bar support
- Qty 2 - Additional support
- Qty 18 - Bracket for flanges 200 mm
- Qty 18 - Bracket for flanges 275 mm
- Qty 4 - Flanges support d. 250-800 mm
- Qty 1 - Telescopic shaft for welding
- Qty 1 - Reduction bushing drawing torch
- Qty 1 - Reduction bushing locking torch
- Qty 5 - Diffusor extension 35 mm
- Qty 4 - Diffusor extension 100 mm
- Qty 4 - Short gas nozzle
- Qty 4 - Long gas nozzle
- Qty 5 - Short contact tip ø 0,8 mm wire
- Qty 5 - Long contact tip ø 0,8 mm wire
- Qty 1 - O-ring for welding shaft 100x5 mm
- Qty 1 - Terminal lance for external welding
- Qty 1 - Centring system for through holes d. 250-800 mm
- Qty 1 - Centring system for through holes
- Qty 1 - Centring system for blind holes
- Qty 1 - Telescopic gauge up to ø 800 m
- Qty 1 - Dial gauge
- Qty 1 - Dial gauge support
- Qty 1 - Set of wrenches
- Qty 1 - Screws and bolts
