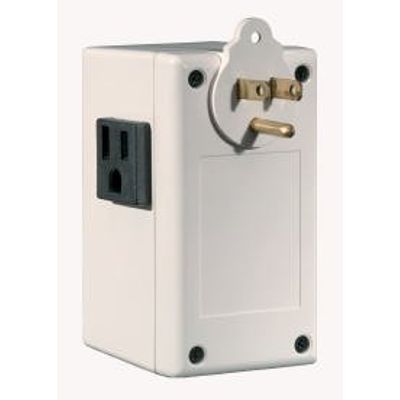

ENERNET - Model T9000 -Line-Voltage Plug Control Node

Operating Power:
120VAC @ .6 watts quiescent

Input/Output:
Standard grounded outlet/plug configuration:

• NEMA 5-15P grounded male plug
• NEMA 5-15R grounded female receptacle
• Built-in relay - 15A @ 120vac resistive load
• Built-in relay – 1HP @ 120vac motor load

ESD Withstand Voltage for No Hard Failures:
2.0 kV

Standards:
FCC Part 15

LEDs:
No user accessible indicators

Temperature Range:
Operating: 0o  to +70oC
Storage: -40o  to +85oC

Humidity Range:
10% to 95% RH, non-condensing at 70oC

Physical Layer:
916.5 MHz Amplitude Shift Keyed

Packet Communications Protocol:
ANSI 709.1-1999

Communication Rate:
9600 bps
