TiMOTION - Model JP3 -Linear Actuator

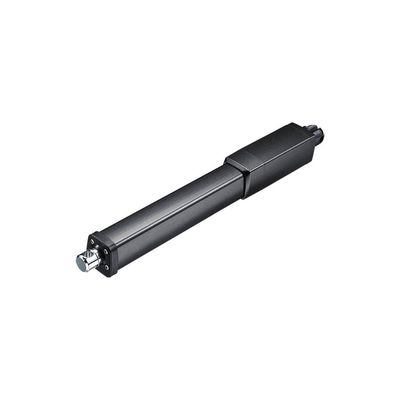

The TiMOTION JP3 series inline linear actuator is engineered for low load industrial applications requiring up to IP69K dust and liquid ingress protection, making it suitable for compact installations with aesthetic considerations. Optional Hall sensors enable synchronization and position feedback, enhancing operational precision. This actuator offers a maximum load capacity of 2,000N in both push and pull modes, reaching speeds of 3.5mm/s at maximum load and up to 23.5mm/s when unloaded. It features a retracted length of stroke plus 217mm and operates efficiently within a temperature range of -5°C to +65°C, with optimal performance between +5°C and +45°C. The actuator is UL73 certified and supports stroke lengths from 20 to 1000mm. It is available in black and grey, with Hall sensors and a choice of 12/24V DC or 12/24V DC (PTC) power options. The JP3 series is ideal for applications such as wheelchairs, agricultural machinery, natural ventilation systems, and solar shading louvers.
