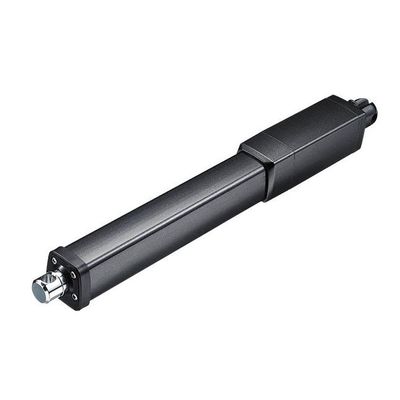

TiMOTION - Model JP4 Series - Linear Actuator

TiMOTION's JP4 series inline linear actuator, designed to cater to the demands of industrial applications, offers enhanced load capabilities and speed compared to its predecessor, the JP3. The actuator's IP69K rating ensures it is resilient against high-temperature conditions, high-pressure water jets, dust, and other solid contaminants. Equipped with Hall sensors for accurate synchronization and position feedback, the JP4 series can handle a maximum load of 4,500N when pushing and 3,000N when pulling, while achieving a speed of up to 27.5mm/s at no load. It operates within a voltage range of 12/24V DC and is available in black and grey. With a temperature tolerance from -5°C to +65°C for operations and a storage range from -40°C to +70°C, this actuator is highly reliable. Its versatility makes it suitable for applications such as wheelchairs, combine harvesters, and solar shading systems, among others, thus enabling a wide range of movements in various high-demand environments.
