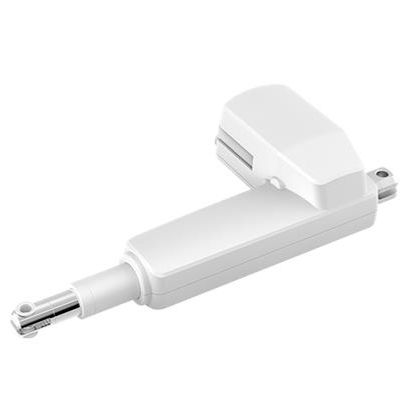

Jiecang - Model JC35B8 -Linear Actuator

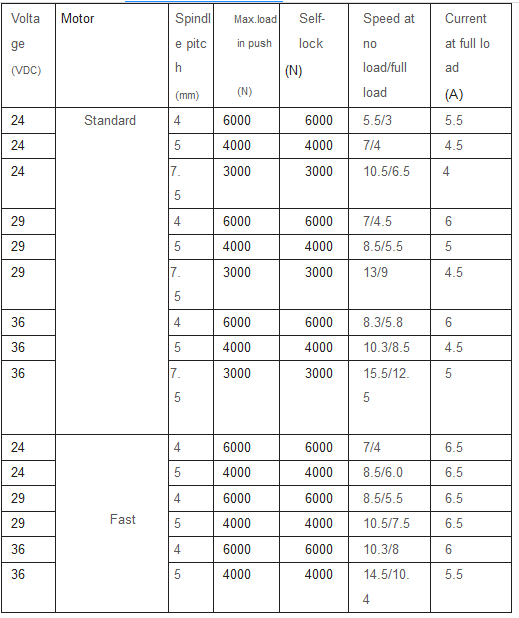

Max./ Static Load push*(N): 6000 | 4000 | 2000 | 1000. Max./ Static Load pull*(N): 4000 | 4000 | 2000 | 1000. Motor rated voltage Input (VDC): 24 (permanent magnet motor). Speed at Full Load: 3 (mm/s) | 4 (mm/s) | 8 (mm/s) | 12 (mm/s). Stroke Length (mm): 100 - 400 (option > 400). Mounting position: H-Type, V-Type. Colour: Black (RAL 9005) or Grey (RAL 7035). Limit Switch: Built-in (electrical). Overload Protection*: Yes. Duty cycle: 10%, max. 2min. continuous use. IP Grade: IP54 (Max. IPX6W). Options: Reed switch, push only, safety nut, Hall sensor. Standards: IEC60601-1: 2012, EN60601-1:2006+A12:2014, ANSI/AAMIES 60601-1: 2005/(R)2012 and A1: 2012, C1: 2009/(R)2012 and A2:201O/(R)2012.
