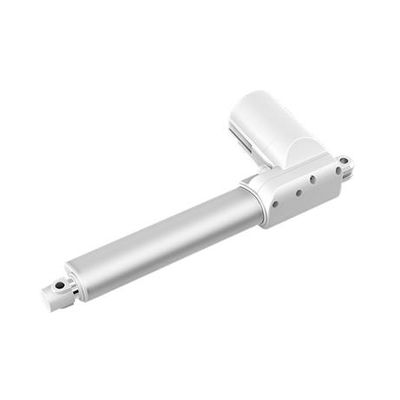

Jiecang -Â Model JC35L29 -Linear Actuator
Dynamic load push: 8000N, 6000N, 4000N. Static pull load: 4000N. Color: gray/black. IP grade: IPX6. Motor: 24VDC. Stroke length: 8000N: 50-300mm (±4mm), 6000N: 50-400mm (±4mm), 4000N: 50-400mm (±4mm).
Most popular related searches
- Retracted length:
- L=225 (S≤50)
- L=S+175 (50<S≤200)
- L=S+185 (200<S≤400)
- Noise level: ≤48dB (environmental noise ≤40dB)
- Built-in electronic limit switch
- Weight: about 2kg (base on different stroke)
- Static bending load: no bending load
- Flammability: UL94V-0 grade
- Application field Medical Line
