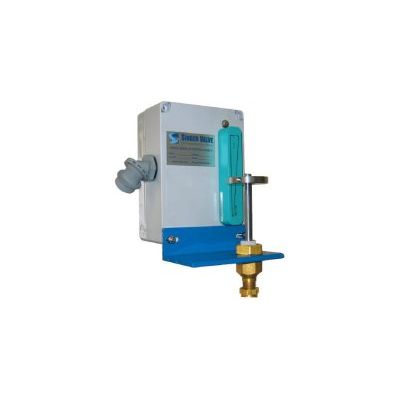

Singer Valve - Model X156 -Linear Inductive Valve Position Transmitter
The X156 Linear Inductive Valve Position Transmitter electronically indicates the position of the valve and is ideal for applications where precision and accuracy is required. It is mounted directly to the main valve stem and uses an external source of 24VDC power, a 4 to 20mA signal proportional to valve stroke is generated and transmitted. The zero and span are fully adjustable over the complete range of stroke.
Most popular related searches
valve position transmitter
non-contact sensor system
sensor system
position indicator
valve position indicator
proportional valve
electronic transmitter
inductive sensor
water enclosure
- The stainless steel actuator stem is pinned directly to the main valve stem
- Stems on main valves larger than 2 1/2 in / 65 mm are pre-drilled for easy installation
- Separate stem cap permits easy field installation
- Combination water-tight rated enclosure to NEMA 4X and NEMA 6
Select Singer main valve specifications from the main valve section and incorporate the following addendum:
- The Linear-Inductive Position Transmitter shall be utilized on valves 2 1/2 in / 65 mm to 36 in / 900 mm 106-PG (40 in / 1,000 mm 206-PG) only.
- The Linear-Inductive Position Transmitter stem shall be pinned to main valve stem on all valves.
- The Linear-Inductive Position Transmitter shall utilize Linear-Inductive, non-contact sensor technology.
- Adapter: ASTM B-16
- Target: AISI 416 stainless steel
- Actuator Stem: AISI 316 stainless steel
- O ring Seals: Buna-N
- Seal Bushing: ASTM B-16 brass
- Mounting Plate: Coated steel
- Actuator Stem Pin: 18-8 stainless steel
