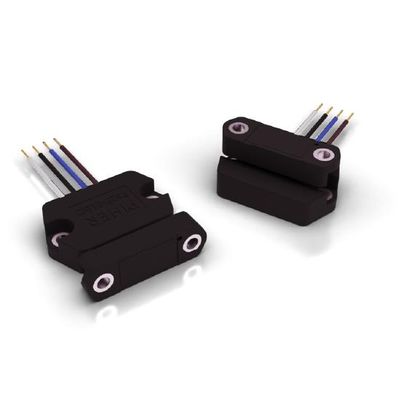

PIHER - Model PS2P-LIN -Linear Touchless Hall-Effect Position Sensor

Magnet and sensor module are placed in separate housings without the need for any gears, bearings or linkages and can be placed anywhere on the moving object. This allows for easy mounting, thereby delivering additional cost reduction on the production line. Furthermore, without wear and tear of radial forces product reliability and lifetime are increased significantly.

The PS2P-LIN measures changes in linear position relative to the sensor by detecting the movement of a magnetized magnet that is located in a separate housing and is only sensitive to the flux density coplanar with the IC surface.

The PS2P series is complemented by touchless rotary (PS2P-CON) and play resistant arc (PS2P-ARC) position sensors. All sensors of the series are absolute sensors and will deliver the same level of precision and stability throughout their lifetime as on the first day they are installed – despite extremes of vibration, shock, temperature and contamination. For longer measurement ranges, Piher designs and manufactures long stroke inductive linear sensors.

True touchless operation
Without any internal or external gears or linkages the sensor is easily assembled and calibrated and free from wear and tear over lifetime.

Unlimited mechanical life
The separation of electronics and magnet module allows for a virtually unlimited lifetime independent of number of revolutions.

Configurable measurement range
Accurate linear displacement feedback of up to 25mm. Other/higher ranges are available upon request.

Compact and low profile package
Without the need for a shaft the sensor is provided in a exceptionally compact and low profile package that fits in space contraint applications.

Made for harsh environments
The rugged package protects the sensor from dust, moisture, vibration and extreme temperatures for usage in the most demanding environments.

Adaptable to your requirements
Programmable transfer function and switch outputs as well as different output protocols and redundancy levels available
