Model EZ1 & EZ2 -Liner Inversion Products

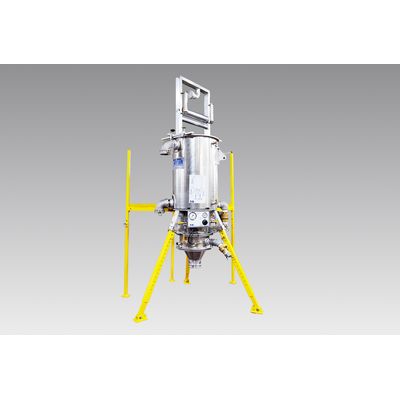

The EZ1/EZ2 Inversion Units uses water or air pressure, depending on the model, for inversion without the need of high scaffolds or lift trucks. The EZ1 model inverts with water only and the EZ2 model inverts with air or water. When using water, the EZ Series utilizes public water available from hydrants. A hot water boiler is then used to cure the liner. Gauges on the EZ Series are used to monitor and control the pressure(s) throughout the inverting and curing process.
Most popular related searches
public water
hydrant monitoring
CIPP liner
utility water
water boiler
lubricant system
water utility
hydrant
liner system
boiler water
- Inverts lengths over 1,000 ft. with water
- Cures with water or steam
- Invert with air, water, or both
- Low profile, no need for high scaffolds or lift trucks
- Utilizes public water from hydrants
- Monitor and control the inverting and curing process
- Inverts CIPP liner from 4″ (150 mm) to 18″ (460 mm)
- Bolt-On-Boots for 6″, 8″, 10″, 12″, 15″, and 18″
- Optional: 4 Inch Bolt-On-Boot & Liner Lubrication System
- Round pressure chamber
- Roller and Capstan – assist in controlling tube insertion
- Platform scaffolding included
