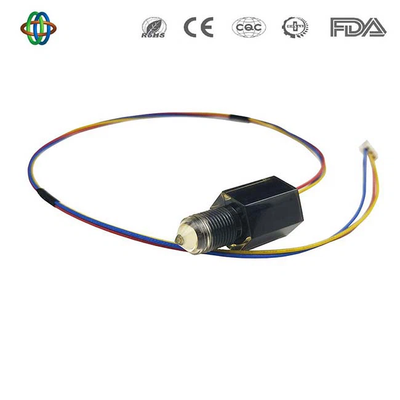

Model FS-IR1902D -Liquid Detection Level Sensor
The liquid detection level sensor FS-IR1902D can be used on electrical appliances and equipment that requiring liquid-level control. It has the following strengths: no mechanical moving components and with high reliability, strong corrosion resistance, high liquid level control precision and can be installed from any direction, satisfies RoHS and FDA requirements, waterproofing standard IP68 and customized.
Most popular related searches
liquid level sensor
level sensor
liquid level control
level controller
level detection sensor
waterproofing
corrosive liquid
PCB
RoHS
RoHS regulations
Item name: liquid level sensor
Output voltage: 5V~24V
Response time: <1s
Working time: >50000hrs
IP rating: IP68
Output signal: Digital signal
Pressure range: -10~10bar
Accuracy: ±0.5mm
Feature: Strong corrosion resistance
Medical devices or equipment
Electrical equipment
Electrical appliances and equipments etc. requiring liquid-level control
- When the output signal of the sensor connected to an external inductive load, it must Parallel IN5819 Schottky diodes. or the chip may be burnt out.
- The current can’t be over 500mA.
- When drawing PCB layout, there should be an 0R resistance between DGND and GND.
- When the PGND current is too big, connecting it to GND can’t avoid the influence on sensor, then the sensor need to be powered independently. The output signal is suggest to be Optocoupler drive.
