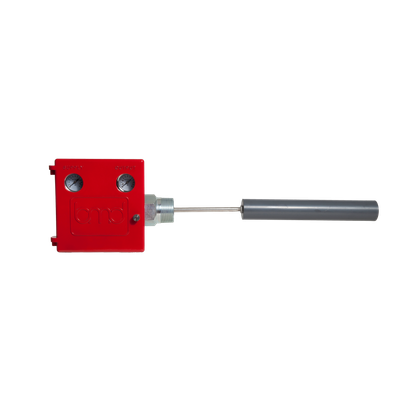

BMD - Model LC10 -Liquid Level Controller
BMD's LC10 is a displacer-operated liquid level controller tailored for various vessel configurations. Designed for reliability and durability, it offers field configurability to suit different industrial applications. The LC10's robust design ensures consistent performance in monitoring and controlling liquid levels, enhancing process efficiency.
Most popular related searches
liquid level control
level controller
EPA 40 CFR part 60
EPA 40 CFR
vessel design
gas controller
pressure gauge
gas control
- Field configurable
- Displacer-operated liquid level controller
- Ideal applications include Scrubbers, Separators, and Heater Treaters
- Force-balanced design allows for control of gas/liquid AND liquid/liquid interfaces
- Wide variety of sizes, end connections, and displacer arm lengths to fit any vessel configuration
- Snap pilot available with soft seat option that meets 40 CFR Part 60, Subpart 0000
- Sizes:
- Threaded: 1 1/2” and 2”
- Flanged: 2” to 8”
- Union: 4” and 5”
- Pressure Rating:
- Threaded: 6000 psi
- Flanged: Up to ANSI 2500 Class
- Union: 1500 psi
- Temperature Range:
- -50° F to 400° F (-46° C to 204° C) (varies by material selections)
- Pilot Connections: 1/4” NPT
- Pilot Max Pressure: Limited by Gauges
- Electric Switch Ratings:
- SPDT: 15 A @ 125, 250, 480 VAC
- DPDT: 10 A @ 125 VAC
- Materials:
- Body: A105, LF2 (Low Temp Option)
- Body Trim: 303 Stainless and 316 Stainless (Optional)
- Pilot Body: Aluminum
- Pilot Trim: 303 Stainless
- Case: Aluminum
- Case Internals: 303 Stainless
- Displacer: PVC (Standard), Acrylic, Stainless
