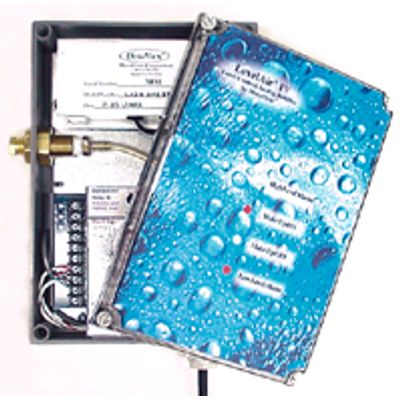

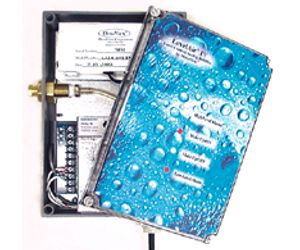

DistaView - Model LevelAir -Liquid Level Controller

A great replacement for level float control systems and conductivity probes. A self contained bubbler level control system. Controls up to 4 devices. A liquid level controller with internal bubbler air supply, 5.0 amp relays and analog sensor. No plant air required.

Most popular related searches

liquid level control

level controller

Typical application shown is for tank filling (make up) and alarms. Many other arrangements are possible including filter media indexing, emptying (sump) and alarms or multiple alarms.

Easily controls challenging level applications such as contaminated liquids or foaming fluids.
Establish or change set points for all levels without shutting down the process or manipulating probes in the tank.
Multiple levels and alarms are controlled with a single LevelAir®.
The bubbler tube senses level and can be positioned anywhere, requires minimal space and there’s no need for large inspection hatches.
Solid state control and analog level sensor provide range variances as narrow as 0.5 inch (13 mm). Saves heat and chemical balance.

DistaView solves these problems on difficult applications such as:

Slurry and viscous liquids
Caustic chemicals and paints
Explosive liquids
Liquids with foam and tamp oil
Very shallow 2-3 inch pans
No access for floats
Narrow control of liquid levels

A quick look at the LevelAir benefits:

Perfect for slurry, foam, explosive and caustic liquids.
Multiple levels and alarms in one enclosure
Adjusting the levels does not require you getting wet
ON/OFF level ranges - narrow as 1/2 in. or wide as 48 in.
A 3/4 in. bubbler pipe requires no inspection hatches, no moving parts
Change any control level without shutting down or manipulating probes/floats in the tank
