Easy Level - Liquid Level Indicator
The new Easy Level Liquid Level Indicator makes it easy to see if the liquid level has exceeded the maximum level desired. The Easy Level (U.S. Patent Number 8,756,991) liquid level indicator is faster and easier than traditional liquid level measurement with portable tapes. If the liquid level rises above the chosen set point, the bright orange indicator will appear in the Easy Level’s clear dome top. If there is a pump in the well, the high level indication signifies excess liquid inflow rates or that the pump may need service. For wells without pumps, a high level may indicate that a pump is needed to maintain the leachate levels below regulatory limits or improve gas collection efficiency.
Using portable liquid level tapes in landfill gas collection wells requires the wellhead to be opened, which allows air into the well and interrupts gas collection. Also, field crews using reel type meters are exposed to any gases that may be released, and to liquids that can coat the tape and probe. Unlike portable tapes that can be triggered by foam, the Easy Level will only indicate a high level when the liquid in the well has exceeded the predetermined level. The Easy Level can also be used with a hand-held analog gauge or digital display to allow easy measurement of the actual liquid level without opening a well or riser.
Ideal for tanks, pits, sumps, manholes and confined spaces for which level monitoring is difficult or hazardous.
Many tanks, sumps and pits are difficult or hazardous to access and monitor for liquid level. The new Easy Level system provides a clear visual warning if the liquid level rises above a selected trigger point or falls below it. The Easy Level indicator requires no battery or electric power supply, so it is safe and easy to install. All that is required is running a 1/4” tube from the probe to the indicator.
- Indicator

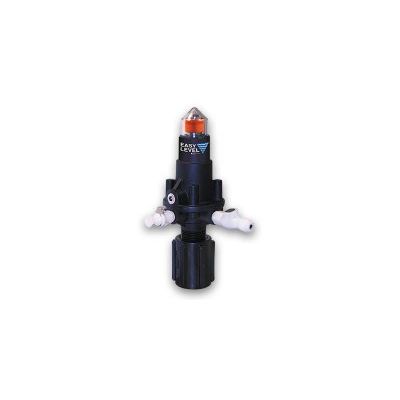

The Indicator, located at the wellhead, shows orange when the liquid level has risen above the predetermined level. An internal bellows prevents any gas/condensate contact with the inner working of the indicator assembly. External reference and bubbler ports can be used with a level measurement system to read the liquid level above the probe. - Downwell Liquid Probe
The Easy Level uses air displacement within the liquid probe and tubing to operate the orange indicator. - Connecting Tubing
You can order the Connecting Tubing cut to desired lengths for your application or in bulk supply reels. The blue nylon tubing is marked in 1-foot increments to make easy field adjustments of the depth of the Liquid Probe in the well.
- Works without opening the wellhead or cap – no air gets in, no gases get out and no vacuum interruption
- No batteries, electric power supply or compressed air source required
- No false indication due to foam in the well or riser
- Internal reference port compensates for pressure or vacuum conditions over liquid
- Connect the optional portable liquid level measurement meter to display actual height of liquid over liquid probe
- Easy installation
- Indicator can be located up to 200 ft. from liquid probe
- The Easy Level™ (U.S. Patent Number 8,756,991) indicator at the wellhead is connected via a 1/4” OD tube to the probe located at the chosen trigger point. The optional reference line corrects for vacuum or pressure above the liquid surface.
- When the liquid level rises above the downwell probe, it compresses the air in the connecting tubing and actuates the Easy Level indicator on the wellhead.
- Max. Depth to Liquid ft. (m): 200 (61)
- Min. liquid level above probe bottom needed to activate in. (cm): 16 (40.6)
- Max. downwell probe OD in. (cm): .75 (1.9)
- Wellhead indicator dimensions in. (cm): 2.5 (6.35) OD x 7 (17.8) H
- Tubing in. (cm) (Nylon*): 1/4 (0.64) OD
- *Other tubing materials may be available if desired based on chemical compatibility; please consult QED.
- View Easy Level Overview
- View Easy Level How it Works
- View Easy Level Liquid Measurement Options
Liquid Level Measurement Options:
Beyond indicating whether liquid levels exceed the chosen probe position, the Easy Level™ (U.S. Patent Number 8,756,991) can also provide a safe and easy measurement of the liquid height above the probe, even under vacuum or pressure conditions. The Easy Level Measurement option requires 2 components:
- Connection ports on the Easy Level, to connect to the pressure and reference sides of the indicator.
- A portable liquid level meter with connecting tubing, a low pressure air source, and a digital or analog gauge.
To measure the liquid level, the portable meter’s quick connect fittings are attached to the Easy Level indicator ports and the meter’s air source is then activated. The level meter displays the liquid depth over the probe, automatically compensated for pressure or vacuum condition above the liquid.
Easy Level Gauge (Model No. 40377)
A simple hand pump with an analog gauge capable of indicating liquid depths up to 16.7 ft.
