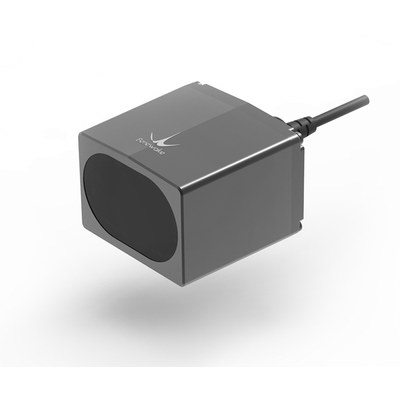

Benewake - Model TF03 IP67 -Long Range LiDAR Sensor
Benewake's TF03 LiDAR sensor is engineered for long-range detection with a range that exceeds 100 meters. It incorporates a unique optical system and signal processing circuit that enhance ranging accuracy and detection frame rate. Encased in an aluminum alloy with infrared band-pass glass, the sensor is designed for durability in various environments. It features multiple interfaces such as UART, CAN, RS-232, RS-485, and 4-20mA, facilitating robust real-time data exchange critical for applications like vehicle collision avoidance and UAV landing assistance. The TF03 can be customized for specific applications, including adjustable frame rates and baud rates, and includes a BootLoader function for convenient firmware updates. The sensor is adaptable for use in industries ranging from smart logistics to security warning systems, offering customizable parameters for specialized requirements. Contact Benewake for detailed specifications, especially for drone-specific adaptations.
The TF03, as the third generation product of the TF series, inherits the high cost-effectiveness and high integration characteristics of the previous two generations while upgrading more than ten key indicators. It offers multiple extended functions and boasts high product maturity, meeting the diverse needs of different application fields. It is primarily used in areas such as drones, intelligent transportation, and security warning systems.
The TF03 features a unique optical system and signal processing circuit design, which enhances ranging performance while maintaining a compact size. In addition to a range exceeding one hundred meters, key parameters such as accuracy and detection frame rate also perform excellently across the entire range. There is also a custom version without an outer shell that is lighter (10 g) and smaller (31.0 mm × 30.2 mm × 19.2 mm). For detailed specifications, please consult Benewake customer service.
TF03 LiDAR has a shell made of aluminum alloy and infrared band-pass glass to improve the overall strength and long-term reliability in various conditions. For functionality, multiple interfaces like UART, CAN, RS-232, RS-485 and 4 - 20mA are integrated into this long-distance LiDAR to enable robust real-time data exchange, crucial for accuracy and safety in vehicle collision avoidance, assisted takeoff, and landing of UAV and traffic flow analysis.
According to the usage scenario, users can customize multiple parameters of the TF03, such as output frame rate, baud rate, trigger mode, and over-range threshold. It also features a built-in BootLoader function, allowing users to conveniently upgrade the product firmware locally. Additionally, there are customized products specifically designed for drone applications; users can consult Benewake customer service for detailed parameters.
