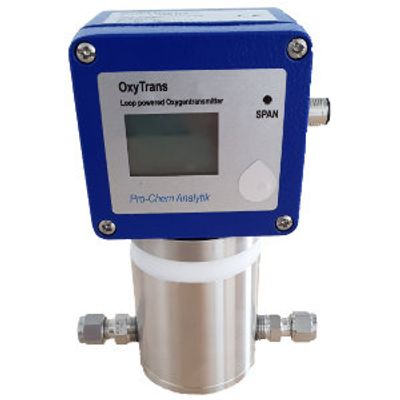

Pro-Chem Analytik - Model OxyTrans I -Loop Powered Oxygen Transmitter
The OxyTrans I is a loop-powered, two-wire oxygen transmitter designed for accurate and economical measurement of oxygen in trace and percentage levels. It features a simple display and one-point calibration for swift startup and straightforward operation. The unit is equipped with an electrochemical sensor, utilizing a special fuel cell to ensure performance in industrial environments, offering sensitivity and accuracy for oxygen concentration measurement. Its robust stainless steel flow-through measuring cell supports ranges from 0-10 ppm to 0-100% oxygen, with a response time of approximately 45 seconds for 0-10 ppm and 20 seconds for 0-100 ppm. The calibration can be performed with calibration gases, and the device operates on a 4-20 mA current output within a 10-35V supply range. This flexibility, coupled with a 6-digit LCD bar graph display, makes the OxyTrans I a reliable instrument for diverse oxygen measurement applications.
The Model OxyTrans is simple, accurate and economic measurement of Oxygen at trace and % levels. A simple Display and one point calibration allow easy and fast start-up of the instrument.
Optional 1/2 G Ex ia IIC T4 (ATEX)
One User specific measuring range The unit will offer with ranges between 0-10 ppm and 0 – 100% of oxygen. Sensor The OxyTrans uses a special fuel cell to measure the oxygen concentration. The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life. Calibration The calibration of the instrument for trace oxygen measurements in gas, should be done with a calibration gas. The concentration can be chosen freely within the measuring range. In the percent range the unit can calibrated with air. Features
- compact
- inexpensive
- Sensor with long operating life
- IP65 enclosure
- reverse voltage protection and temperature
- temperatur compensation
Flow-through measuring cell in Stainless Steel
- The measuring cell is modular and is made of stainless steel
- A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit
- Parameters : Oxygen %
- Oxygen ppm
- Method : electro chemical
- Range :
- 0 – 100 %
- 0 – 10.000 ppm
- 0 – 10 ppm
- special Range
- ATEX : Ja
- SIL : Ja
- Accuracy : +/- 2 % FSD
- Resolution : 0,1 ppm
- 0,01 ppm
- Flow rate : ca. 1 l/m
- Pressure : 0,1 – 1 bar
- Calibration : Air
- Calibration Gas
- Response time T 90 : 0 – 10 ppm = 45s
- 0 – 100 ppm = 20s
- Gas temperature : 0 – 50 °C
- Output : 4 – 20 mA
- 2-Wire
- Supply Voltage : 10 – 35V
- Display : LCD 6 Digits
- Bargraph display
- Protection Class : IP 65
- Connection : 6 mm
- Dimensions : 120 x 160 x 65
- Weight : 2 Kg
- different sensors available
- 5 different Measuring ranges
- 316 SS Stainless steel Cell block
- optional Sensor housing with KF40 tri clamp
- Semi conductor industry
- Gas manufacturers’
- Metallurgical industries
- Chemical industry
- heat treating and bright annealing
