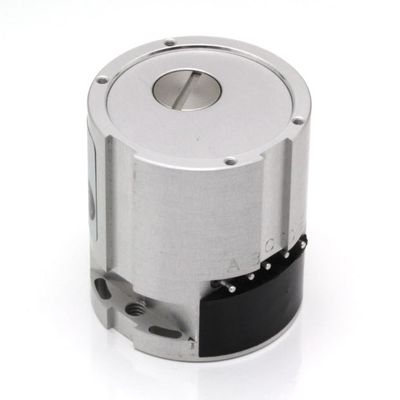

Level - Model LSRP-1 -LSR Inclinometer Sensor
The LSR is a high precision single axis gravity referenced servo inclinometer sensor suitable for both military and industrial applications. They are extremely sensitive and linear devices making them particularly suitable for the precise measurement of angle in high vibration environments.
Most popular related searches
- Single axis angle measurment
- Measurment range: ±1°
- Small form factor - stackable for dual axis configuration
- Closed loop servo technology
- Extremely rugged (withstands 1500g shock)
- Measurement resolution down to 0.1 arc seconds
- Analogue voltage output (±5V)
- Silicone oil and electrical damping
| Parameter | Value | Unit |
| Number of Axis: | 1 | - |
| Range | ±1 | ° |
| Resolution | 0.00006 | ° |
| Accuracy at 20°C | 0.0016 | ° |
| Output Type | ±5V | - |
| Technology | Closed Loop Servo | - |
| Maximum Zero Bias Error | 0.02 | ° |
| Non-Linearity | 0.05 | % |
| Uncompensated Temp Error | 0.001 | ° / °C |
| Frequency Response | 1 | Hz |
