SkimTech - Model BG34 -Lucy Skimming System
The Model BG34 Oil Skimming System is designed to remove free-floating oils, fats, grease and other material from the surface of water in indoor and outdoor applications. Typical applications for this type of oil skimmer include “tramp oil”removal from central coolant systems, waste water treatment oil/water equalization tanks, outdoor oil/water separators, settling and cooling ponds and hundreds of other applications. We welcome your inquiry and will respond promptly. Please contact us and we’ll be in touch.
Also designed for indoor and outdoor applications where standard removal rates are sufficient - oil and grease settling basins, cooling water and settling ponds, and large multiple machine central coolant systems. Uses 3/4" TigerTube™ for standard oils, fats and grease removal rates and efficiency
Strongly constructed

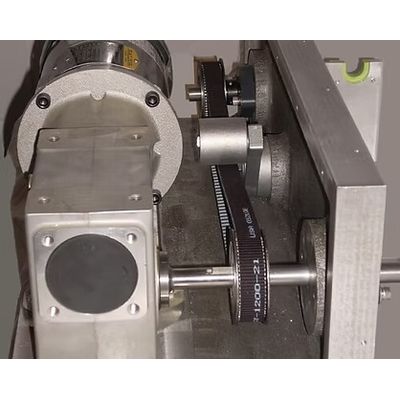

- Lubed for life gear reducer, bearings, & sprockets
- Replaceable Dureon™ Drive and Pulley wear rings

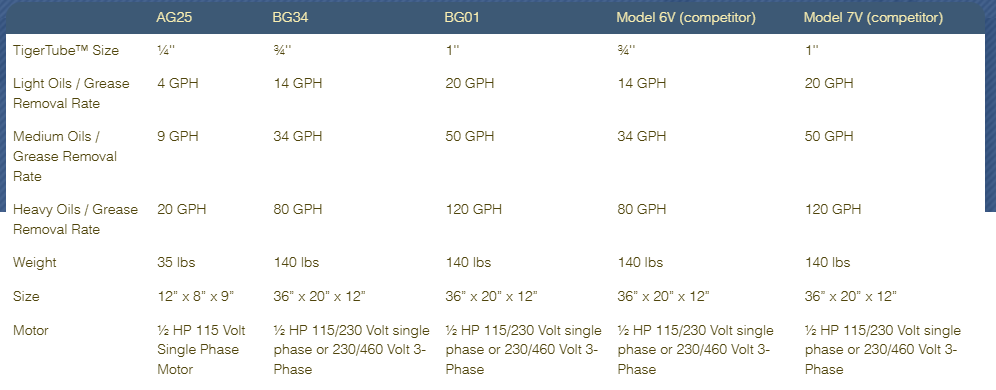

Quicker Removal Rates
- Light Oils & Grease - 14GPH
- Meduim Oils & Grease - 34 GPH
- Heavy Oils & Grease - 80 GPH
As Safe As They Come
- Safety guard with integral Dureon™ scrapers & pressure blocks
- Quick connect and release Drive and Pulley Wheels

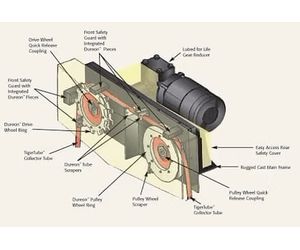

The Model BG34 Oil Skimmer uses a specially formulated ¾” diameter collector tube (TigerTube™) that is sized in length for the application and welded into a continuous loop. The ¾” TigerTube™ collector tube floats on the surface of water and is driven in a continuous loop by the skimmer. Oils, fats, and grease cling to the outside surface of the TigerTube™ and are drawn into the skimmer. The material drawn into the skimmer is scraped off the TigerTube™ by abrasive resistant scrapers (our long lasting Dureon™ scrapers) and flows into a sludge pan with drain coupling. The clean side of the TigerTube™ collector tube is then driven back to the surface of the water by the skimmer to remove more material.
Learn more about our mounting systems.
