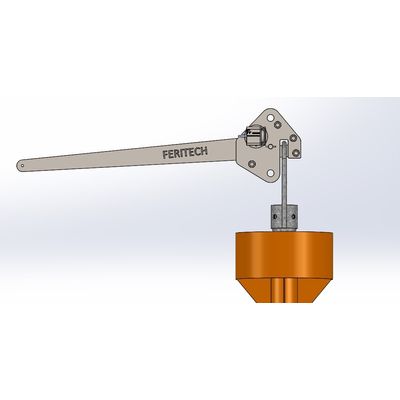

Feritech - Model FT0510 -Manual Drop Trigger

The system is supplied with configurable weights allowing for 49-816kg of additional weight (available in steel and lead), controlling penetration for a range of projects – coastal environments to deep water locations, and everything in between.

The Piston Corer creates a vacuum when collecting a sample, therefore maximising the quality of sample recovery. Feritech also offers a range of LARS equipment, suitable for a wide range of projects to help improve the efficiency of the deployment and recovery process with our Piston Corer.

• Hydrostatic safety release system
• Full ocean depth rating
• 1-12m barrels in 1m increments
• Type A barrel – OD 101.6mm, sample size 84mm
• Type B barrel – OD 127mm, sample size 106mm
• Configurable weights from 49-816kg available in steel or lead
• Manual or automatic release trigger
• Integration with Feritech HUB software
• Consumables in stock
• A-Frame / LARS option available

The winch can either be used in lift mode or constant tension mode. When in constant tension mode, the cable tension and recoil speed can be controlled locally on the winch, or controlled remotely with the addition of the Feritech HUB. In lift mode, the winch is controlled either locally or remotely via a joystick control.
