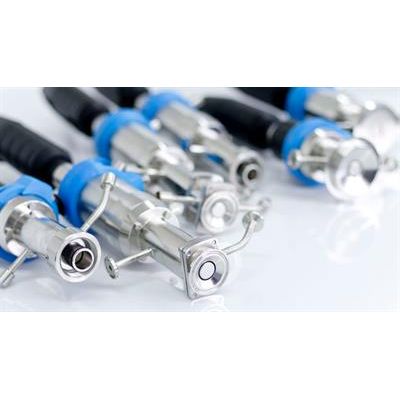

Cleanfit - Model CPA875 -Manual or Automatic Retractable Assembly
Sterilizable assembly for the life sciences and food & beverage industries. Completely sterilizable, the Cleanfit CPA875 retractable assembly guarantees maximum protection from contamination making it ideal for use in life science and food & beverage applications. Fully certified (EHEDG and ASME BPE) and made of FDA-recommended materials, the CPA875 is the right choice where hygiene counts!
-
Highest process safety: The patented design of the dynamic sealing prevents
contamination. -
Simple operation: Remove, sterilize and calibrate the sensor while the process is running – aseptic and hygienically safe.
-
No cross-contamination: Sterile design according to EHEDG and ASME BPE as well as sealings according to FDA and USP class VI.
-
Flexible: Individual adaptation to your process requirements based on variety of process connections.
-
Optional double service chamber: Sealing between sterile and non-sterile part moves dynamically with the sensor guide – just like in a syringe. The sterile space and the process medium remain untouched.
Cleanfit CPA875 is a retractable assembly for pH, ORP, oxygen and NIR sensors with a diameter of 12mm and 225/360mm length.
It has been developed for highest safety in:
-
Food & beverages
-
Biotechnology
-
Life sciences
-
Special chemicals
-
Measuring principle
Sensor ORP / Redox
-
Application
Food and beverages, biotechnology,life sciences,special chemicals
-
Installation
retractable process assembly
-
Characteristic
open and closed tanks, piping
-
Design
-sterile and hygienic stile - manual or pneumatic
-
Material
holder: stainless steel 1.4435 (AISI 316L), seals: EPDM-FDA, FKM-FDA, FFKM-FDA
-
Dimension
immersion depth: 28 - 81 mm
( 1.10 inch - 3.19 inch), depending on process adaption -
Process temperature
- 10 - 140 C
(14 - 284 F) -
Process pressure
pneumatic drive: 16 bar, (232 psi)
manual drive: 8 bar, (116 psi) -
Connection
aseptic DN25 clampable, aseptic DN50 screw-in , clamp ISO 2852,ASME BPE, Varivent N
