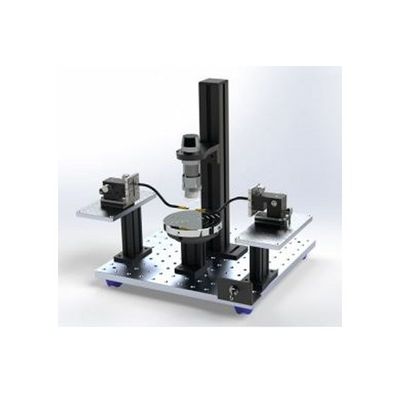

SemiProbe - Model m1-PS4L-2 (50 mm) -Manual Probe System
The SemiProbe Mini-PS4L family of probe systems are built using the same design concepts as our patented Probe System for Life (PS4L) Architecture. The MiniSeries is designed to address the requirements of small sample testing using a small footprint.
The Mini-PS4L family of configured probe systems addresses basic research and characterization applications that require probing on samples that are 100 mm and less in size. Our conventional family of probe systems – Lab Assistant and Probe System for Life (PS4L) are an overkill in size, capabilities, and cost for small sample testing applications.
The Mini-PS4L addresses the following applications:
- Basic Research and Device Characterization on small samples – die, partial wafers, PCB, substrates, and packaged parts
- Ideal for universities, government labs and corporations requiring simple testing capabilities
- Small Footprint – easily fits on a bench, desk, cart or in a glovebox
- Cost – configured systems start at $6000
- Flexibility – multiple system and accessory configurations are available
- Field Upgrade Path – new modules and accessories can be added when required
The Mini-PS4L Series of probe systems are sold as a kitted configuration. Everything you need to start probing is included in the kit – prober, accessories, and installation manual. It is designed to be fully operational within 30 minutes after opening the box. This unique modular design enables customers to acquire test capabilities that precisely match their requirements and budget. More important, as the environment ortest conditions change,the Mini -PS4L can be field-upgraded to add new capabilities or completely exchanged for a larger PS4L system at full credit. With this design philosophy, customers realize substantial time and cost savings over traditional probe systems because they do not need to invest in a new platform when wafer size, levels of automation or test requirements change
- 50 mm Vacuum chuck
- Two complete MA-8005 manipulators with adjustable probe arm faceplates, coaxial probe arms, magnetic bases, and probe tips
- Fixed Platen - fits up to four manipulators
- Fixed Stage
- Adjustable Optics (Z)
- Accessories – manipulators, probe arms, probe tips, optics, CCTV System, Packaged Part Holders
- 100% Credit to PS4L Purchase – entire mini purchase price credited to PS4L purchase
