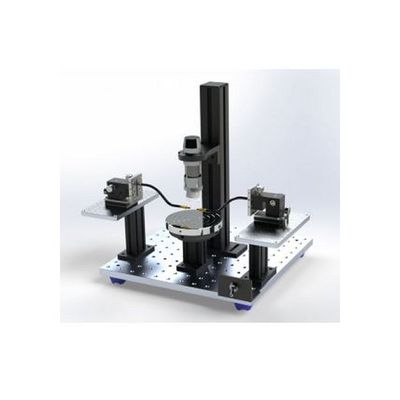

SemiProbe - Model m1-PS4L-3 (75 mm) -Manual Probe System

The Mini-PS4L family of configured probe systems addresses basic research and characterization applications that require probing on samples that are 100 mm and less in size. Our conventional family of probe systems – Lab Assistant and Probe System for Life (PS4L) are an overkill in size, capabilities, and cost for small sample testing applications.

The Mini-PS4L addresses the following applications:

• Basic Research and Device Characterization on small samples – die, partial wafers, PCB, substrates, and packaged parts
• Ideal for universities, government labs and corporations requiring simple testing capabilities
• Small Footprint – easily fits on a bench, desk, cart or in a glovebox
• Cost – configured systems start at $6000
• Flexibility – multiple system and accessory configurations are available
• Field Upgrade Path – new modules and accessories can be added when required

• 75 mm Vacuum chuck
• Two complete MA-8005 manipulators with adjustable probe arm faceplates, coaxial probe arms, magnetic bases, and probe tips
• Fixed Platen - fits up to four manipulators
• Fixed Stage
• Adjustable Optics (Z)
• Accessories – manipulators, probe arms, probe tips, optics, CCTV System, Packaged Part Holders
• 100% Credit to PS4L Purchase – entire mini purchase price credited to PS4L purchase
