Flusso - Model FLS112 -Mass Flow Sensor

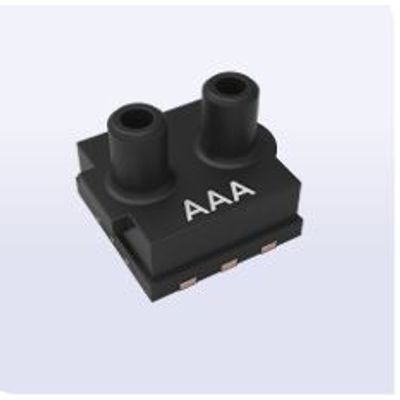

The FLS112 Mass Flow Sensor by Flusso is one of the world's smallest flow sensors, designed for seamless integration into various applications demanding precise fluid dynamics management. It has a compact footprint of 3.5 mm x 3.5 mm, allowing for integration in space-constrained environments. The sensor provides highly repeatable mass, volumetric flow, differential pressure, and temperature measurements with a repeatability of 0.5 sccm +0.5% of the measured value. It is capable of sensing flow rates from 0 to ±500 slm or more, with fully temperature-compensated and calibrated outputs for reliable flow signals. With versatile operational modes and customizable features, FLS112 is suited for diverse applications from household appliances to advanced AI systems. Leveraging proprietary T-MEMS technology, it supports scalable and cost-effective production, meeting the demands of both innovation and ecological efficiency. Flusso's sensor flexibility includes supporting fluidic and mechanical integration, ensuring precise calibration and system accuracy.
The FLS112 is Flusso’s flagship mass flow sensor. It’s designed for easy integration into even the most complex flow paths, bringing greater energy efficiency and cost-effectiveness to high-volume and novel applications.
- Full flexibility on integration The world’s smallest sensor slots seamlessly into your existing products, and they’re cost-optimised.
- Prime performance and scalability 3.5 mm x 3.5 mm of epic engineering, combining best-in-class MEMS flow sensing performance with manufacturing scalability.
- Completely customisable 360° support, spanning consultation to calibration for best possible in-system accuracy.
- A super-scalable flow sensing solution for your business.
- Fully customisable.
- Displays mass flow, volumetric flow, differential pressure and temperature measurements.
- Outstanding bidirectional gas flow measurement performance.
- We hit that price-performance sweet spot. Check out the FLS112 in more detail.
- Small but mighty: 3.5 mm x 3.5 mm.
- Outstanding resolution and accuracy across measurement ranges, fully tailored up to ±500 slm or more.
- Exceptional stability at ‘0’ flow.
- Optimal through-flow configuration.
- Bidirectional flow sensing.
- Outstanding water resilience.
- Fully temperature-compensated for a reliable flow signal.
- Configurable operational modes and features.
