Alimak - Model TPM 1300SD -Material Construction Hoists

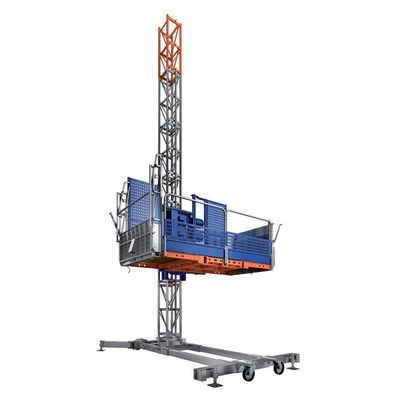

The Alimak TPM is utilised on construction sites for the vertical transportation of passengers and large and bulky loads such as palettes, prefabricated loads and materials. Suitable for installation on the inside or outside of buildings, the TPM range offers true flexibility. The Alimak TPM range is designed to drive efficiency and productivity on construction sites 1,300 kg – 4,000 kg and 6 available configurations derived from standard components.
Each unit has dual functionality, and can be used as either a transport platform (TP) or material hoist (MH).
Safety is paramount in all Alimak Hek machines. The transport platform conform to the latest safety standards and feature overload protection and over speed safety devices which not only ensure safety of the operator but also prolong the working life of the machines.
Each unit has dual functionality, and can be used as either a transport platform (TP) or material hoist (MH).
- Min/max platform length 1.6 m
- Min/max platform width 3.2 m
- Max payload capacity 1,300 kg
- Max payload at max length Not applicable
- Max number of people* (TP/MH mode) 5/0
- Speed (TP/MH mode) 12/24 m/min
- First anchor position 9 m
- Max lifting height tied 200 m
- Tie distance 9 m
- Free topmast 4.5 m
