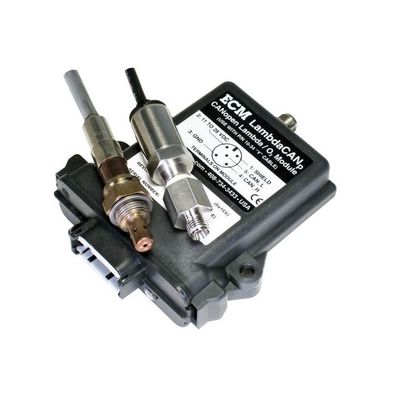

Model LambdaCANp Kit -Measurement Module
ECM’s LambdaCANp Module is a powerful, “next-generation” wideband Lambda (λ) measurement module with a CAN interface. In addition to providing outstanding measurement range and accuracy, LambdaCANp addresses the two principle sources of error with wideband sensor use: sensor aging and pressure sensitivity. All wideband sensors and pressure sensors supplied are factory-calibrated and this calibration is stored in a memory chip in the sensor’s connector. For best accuracy over the life of the wideband sensor, calibration can be quickly performed using ambient air. This recalibration is stored in the memory chip and stays with the sensor. Sensors can be tested and recalibrated in a central location and distributed to users, ensuring consistent results throughout a large test facility.
Pressure compensation (P-COMP™) improves accuracy at non-stoichiometric (i.e. λ ≠ 1) and non-atmospheric (i.e. P ≠ 101 kPa) conditions. For example, a pressure increase of only 34 kPa will cause an error of 0.58 λ at λ = 3. Pressure compensation eliminates this error and enables innovative applications such as %O2 measurements in intake manifolds. Pressure data is available on the CAN bus.
LambdaCANp will work with all NTK and Bosch-type wideband sensors. It is programmable for all fuel types (H:C, O:C, N:C ratios and H2). LambdaCANp outputs λ, AFR, FAR, ?, %O2, pressure, and all sensor parameters including pumping current, control voltages, temperature (via cell resistance), and sensor age factor. Three optional displays, two with programmable analog outputs are available. These displays can used with one or two modules.
General
Response Time: Less than 150 ms
Fuel Type: Programmable H:C, O:C, and N:C ratios, and H2
Power: 8 to 28 VDC, AC/DC (optional), 5A (max. 1min. surge), 1.2A (steady-state)
Sensor Mounting: Wideband: 18mm x 1.5mm thread
Pressure: 1/4" NPT/ISO
Dimensions: Module: 145mm x 120mm x 40mm, Environmentally Sealed
Sensor Cable: 0.5m (sensors), +2m (standard), +3m (optional)
Operating Temperature: Electronics: -55 to +125°C, IP67
Sensor: 850°C (maximum continuous)
Ranges & Accuracies
λ: 0.4 to 25 (± 0.6% at stoichiometric, ± 0.9% average elsewhere)
AFR: 6 to 364 (± 0.6% at stoichiometric, ± 0.9% average elsewhere)
F/A: 0.003 to 0.167 (± 0.6% at stoichiometric, ± 0.9% average elsewhere)
φ: 0.04 to 2.5 (± 0.6% at stoichiometric, ± 0.9% average elsewhere)
O2: 0 to 25% (± 0.1%)
Pressure: SAE: 0 to 75 psia (± 0.1 psia)
Metric: 0 to 517 kPa (± 0.7 kPa)
Outputs
CAN: CAN2.0A. Compliant with ISO 11898.
Configurable via CAN using ECM`s Configuration Tool software.
