Coskun - Mechanical Screen
As a pre-treatmentequipment, it stands as an effective solution for solid matters in the waterthat can lead to a misfunctioning of the mechanical equipment such as pumps.These equipment can be designed according to the specific features of theplant. The main criterias for the equipment selection are characteristic of theprocess and flow rate.
In general, the main parts of the screen arescreen bars, screen frame, driving gear, rake system and discharge trough.Mechanism of the driving gear can be single-rake or multirake.
The distance between the bars can vary between10mmm and 90mm. Hot-dip galvanized carbon steel or AISI 304-316 stainless steelcan be used to manufacture these screens. Bulk materials can be minimized insize by pressing.

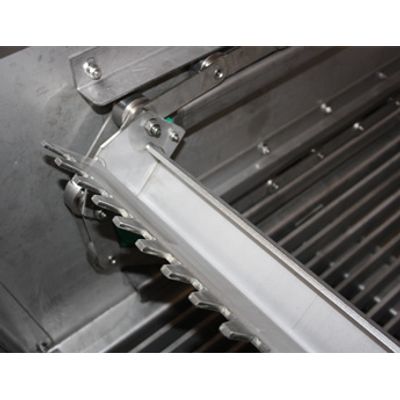

Linear Mechanical Screen
This product is widely preferred. Fine or coarsescreen can be used as proper to the channel. It usually operates at 75° angularposition. It is important to use manuel coarse screen with wide spaced bars interms of the efficiency of the linear mechanical screen. Mounting is donerigidly by our technical staff after the manufacturing. Linear mechanicalscreens are under guarantee for 2 years.
Screen types are as below;
- Continuous Mechanical Screen
- Circular Mechanical Screen
- Rope Screen
