Triogen - Model UVASPA SS -Medium Pressure UV Systems
Uvaspa SS range of equipment is a cost effective addition to the range of Triogen UV systems offering small/private pools, spas and aquariums the benefits of medium pressure UV technology at lower cost. The reactor body is supplied in stainless steel with uPVC connections. The units have a unique lamp and thimble removal system which allow an easy manual cleaning without the need of special tools. Units are available for flows up to 75 m³/h.
The UVASPA SS is designed to offer commercial spas and small pools a cost effective medium pressure UV system for disinfection and improved water quality.
Applications
- Spa Disinfection
- Hydrotherapy pool disinfection
Main Characteristics
Medium pressure UV system for commercial spa and small pool disinfection
Main Features
- Medium pressure UV
- Effective against Cryptosporidium and Giardia
- Reduces chloramines
- Easy manual thimble cleaning arrangement
- Wall mounted control panel
- Simple to install and operate with minimal space requirements
- Automatic low power option
UV Technology: UVASPA SS
The UVASPA SS medium pressure UV system is designed for disinfection of commercial spas and small pools. Medium pressure UV systems are particularly effective against the highly infectious Cryptosporidaium Parvum and Giardia Lamblia species which are virtually unaffected by the use of chlorine alone.
As UV is not a residual disinfectant, a chlorine residual is required to prevent cross infection between bathers. High proportions of combined chlorine products (chloramines) in circulating water are destroyed by the UV irradiation process. Removal of these compounds greatly improve bathing water quality, reducing skin and eye irritation and removing the common and unpleasant ‘‘swimming pool’’ odour.
How It Works

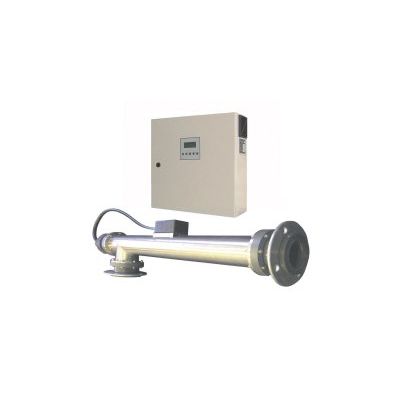

The medium pressure UV lamp is powered by an magnetic ballast housed within a separate wall mounted control panel. The wide spectral distribution of the Triogen lamp produces the simultaneous treatment of several aspects of the circulating pool water as described above.
The UV reactor design allows easy withdrawal of the lamp and thimble assembly as one unit for periodic cleaning of the thimble external surface. No special tools are required to carry out thimble cleaning and can easily be done by pool operator.
