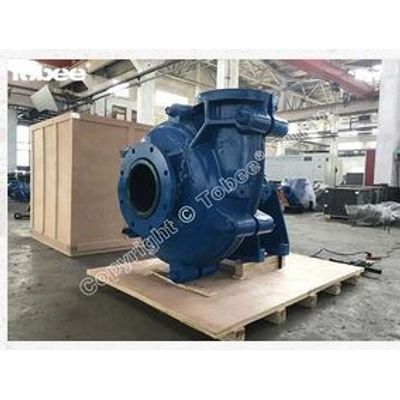

Tobee - Model 12/10F-M -Medium Slurry Pump
12/10F-M Slurry Pump is a proven horizontal end suction centrifugal slurry pump that will reliably and economically handle abrasive and corrosive medium duty services, The 12/10F-M medium slurry pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal casting liners and Impellers, which are all interchangeable within a common casting assembly.
Most popular related searches
slurry pump
centrifugal slurry pump
end suction slurry pump
end suction centrifugal pump
valve operator
end-suction horizontal centrifugal pump
horizontal centrifugal slurry pump
pressure seal
end suction pump
centrifugal pumping
- Size: 12" x 10"
- Capacity: 720-1980 m3/h
- Head: 7-68 m
- Speed: 300-800rpm
- NPSHr: 4-10m
- Eff.: 73%
- Power: Max.260kw
- Handling solids: 65mm
- Materials: High chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc
- Wear is reduced and maintenance simplified by the use of a one-piece volute liner with no radial split at the cutwater
- Front and back liners are adjustable while the pump is running to maintain efficiency and minimize wear; also reduces expeller clearance maintaining shaft seal performance
- Internal liners can be fully worn as the cast iron split outer casing provides structural integrity and high operating pressure capability
- Safe closed valve operation is assured by the pressure relief device fitted as standard on all models
- An easily removable hardened steel or ceramic coated steel shaft sleeve with o-ring seals at both ends protects the shaft from abrasive or corrosive contaminants
- Reduced and simplified inventory is assured with a minimum number of wearing parts
- Reduced seal pressure and internal recirculation is achieved by the pressure molded deep sealing vanes on the front and back of the impellers
- Extended bearing life is assisted by large diameter flingers and static seals to prevent ingress of liquids while operating and while stopped
- Grease relief holes prevent bearing overheating due to over greasing
- The best material for each application can be chosen from the wide range of erosion and corrosion resistant materials, enabling wear life optimization of each component
