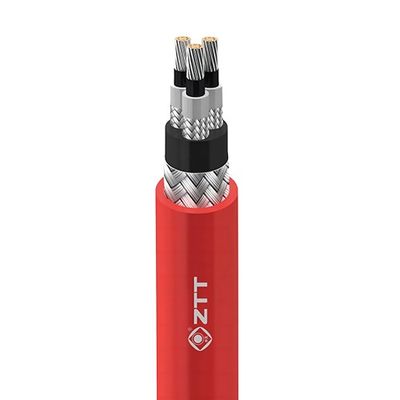

ZTT - Medium Voltage Marine Power Cable

• Fire-Retardant
• Low-Smoke
• Abrasion-Resistant
• Halogen-Free

• IEC 60092-354:It is applicable to single core or three cores marine and offshore power cables with extruded insulation, conductor and core screening, having a rating voltage of one of the following: 3,6/6kV, 6/10kV, 8,7/15kV, 12/20kV, 18/30kV. The cables are intended for fixed installations.
• IEC 60332-3-22,Cat.A: It is a test for the assessment of vertical flame spread of vertically mounted bunched marine mv cables, under defined conditions.
• IEC 60754-1:Test on gases evolved during combustion of materials from medium voltage cables.
• IEC 61034-1:Measurement of smoke density of marine medium voltage cables burning under defined conditions.

Marine MV Cable Layer: Materials
Conductor: IEC 60228, circular compacted strand tinned copper
Conductor Screen: Semiconducting material
Insulation: XLPE or HF EPR
Insulation Screen: Copper tape and semiconducting material
Inner Covering: Halogen-free compound, SHF1 / SHF2
Amour: GSWB or TCWB
Outer Sheath: Halogen-free compound, SHF1 / SHF2

For longevity and efficiency, marine medium voltage cable is tailored for installation when the bespoke cable is required. At ZTT, we have expert engineers to work with your design and meet your requirements.

Custom marine MV cables depend on the metallic screen size area that can be adjusted to change the earthing provisions and short circuit capacity. Our customized services are subject to improved testing in our high-end MV cable testing facility.
