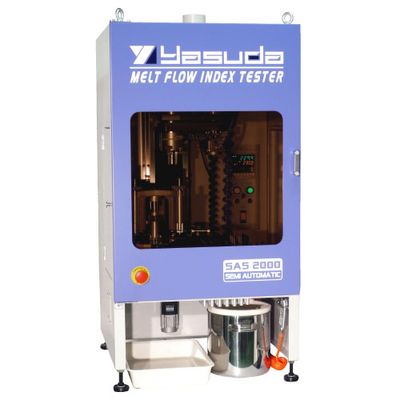

YASUDA-SEIKI - Model No.120-SAS -Melt Flow Index Tester (Automatic)

This tester is used to measure the melt flow index of thermo-plastic. The melt flow index is acquired from the weight or the volume of the extruded specimen at a specified cylinder temperature and with a specified load of piston through the die. The tester is assorted with an automatic cleaning system which enables to perform 1 test cycle without discontinuation (option of 3 test cycles).

Most popular related searches

melt flow index tester

smoke detection sensor

cleaning solvent

exhaust fan

smoke detection

temperature calibrator

flow testing

smoke sensor

mechanical vapor recompression

reference method

Specifications are subject to change without notice.
Hangings: 1 or 3 Hangings (2 kinds)
Die: φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston: Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder: Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range: Max. 300 °C (Option: Max. 400 °C)
Initial Weight: 0.325 kgf
Additional Weight: 1.20 ? 21.60(? Please refer below)
Test Method: Method A: Manual (Option: Automatic)
Method B: Automatic
Specimen Feeding: Automatic
Weight Loading: Automatic
Weight Change: Manual (Option: Automatic)
Cylinder Cleaning: Automatic (Solvent Cleaning can also be Automatic)
Die Cleaning: Automatic
Piston Cleaning: Manual (Option: Automatic)
Die Cleaning Rod Cleaning: Manual (Option: Automatic)
Cleaning Gauze Feeding: Manual
Data Processing: Method A: Manual (Option: Automatic)
Method B: Automatic
Method B Measuring: Rotary Encoder
Software: Windows Compatible
Accessories: Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun
Option: Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor (Standard for No.120-LABOT)
Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)
Power Source: AC 200 V, 1-Phase, 10 A, 50/60 Hz
AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type)
Air Source: 0.5 MPa or More
Dimensions/ Weight (Approx.): 1 Hanging: W675× D645 × H1,370 mm/200 kg
3 Hangings: W675 × D725 × H1,370 mm/ 220 kg
