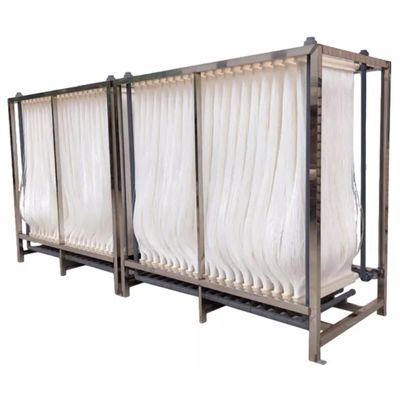

Ecojoy - Model MBR -Membrane Bioreactor System
Membrane Bio-Reactor (MBR) technology is an integrated system built upon the synergy of membrane modules and biological reactors. ECOJOY ENVIRONMENT established its leadership in the field with the successful development of the first large-scale HQMU Membrane Bio-Reactor. Following years of iterative upgrades and proven performance across hundreds of large-scale municipal wastewater projects, we have refined the HQMU series into a premier industry standard. our latest energy-saving MBR Unit represents the pinnacle of our innovation, specifically engineered to slash operational energy costs. By integrating multiple proprietary technologies, this unit effectively mitigates membrane fouling to ensure consistent, stable, and long-term performance.
- High effluent quality: The membrane fiber pore size is evenly distributed, with high filtration accuracy and low turbidity of 1 NTU.
- Low operating energy consumption: The patented slot-type air-gathering pulse aeration technology, the unit water production blow-off energy consumption is lower than 0.1 kw h/m³.
- Strong anti-fouling ability: The membrane fiber has a unique gradient network membrane pore structure, the component is arranged in an orderly filament structure, the three-position water collection system, the pulse high shear aeration structure of the reactor, effectively alleviates the sludge and hair accumulation phenomena during operation, and improves the anti-fouling ability of the reactor.
- Small footprints: The membrane tank has a high filling density and the hydraulic retention time is less than 1 hour.
- Long service life: The use of fiber-reinforced composite membrane production technology, the membrane fiber breaking stress is above 200N; the addition of membrane fiber root protection measures reduces root wear and bending rate, with a service life of more than 5 years.
