Method 16A Sampling Sytem

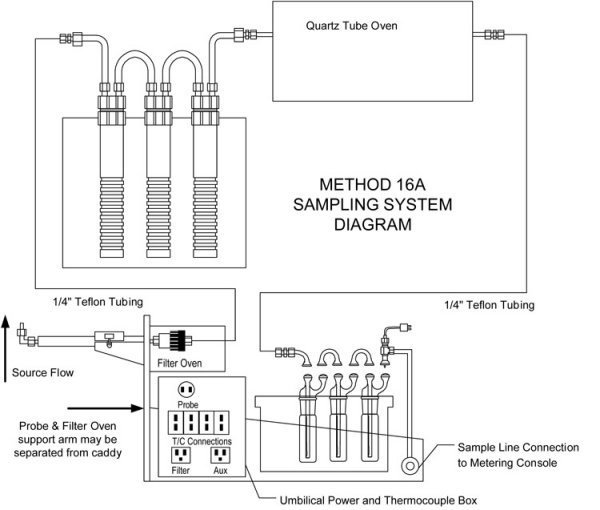

Method 16a - Determination of Total Reduced Sulfur Emissions from Stationary Sources. This manual method has been replaced by more automated systems in the U.S., but is still frequently requested from samplers outside the U.S. so we have decided to provide a listing of the component pieces needed for this system.
Most popular related searches
total reduced sulfur
FEP tubing
sulfur emissions
sampling train
stationary source
filter holder
PFAS
emissions control
emissions source
furnace
|
ESC P/N
|
Qty
|
Description
|
|
PRA-TO3-16a
|
1
|
Probe Assembly, 3`, Heated, 1/4" FEP, Elbow
|
|
XT-TFEP-4-2
|
15
|
Tubing, FEP Teflon, 1/4" x 1/8"
|
|
M6-SC
|
1
|
Method 6/26 Sample Caddy with Probe Support
|
|
M26-VFH-V
|
1
|
M26 Valve/Filter Oven, 230V
|
|
GFT-2-4
|
1
|
Filter Holder, PFA, 47mm, 1/4"T
|
|
GF2-T-1/2
|
2
|
Filter, TFE, 47mm, 1-2 Micron/pk
|
|
PFA-RU8-4
|
2
|
Reducing Union, PFA, 1/2-1/4"
|
|
TW-375
|
3
|
Impinger, PFA, 375ml, with cap (1/2")
|
|
TW-LF16
|
2
|
Tube, FEP, 90 deg, 1/2", Full Depth
|
|
TW-U16
|
2
|
Tube, FEP, 180 deg, 1/2", Full Length
|
|
TW-O16-2.3
|
3
|
Orifice, PFA, 2.3MM, 1/2" Tube
|
|
M5-CB04
|
1
|
Cold Box, 4-impinger
|
|
M16A-BLM-V
|
1
|
Furnace, Quartz Tube, 1100C, 240VAC
|
|
GP-16A-Q
|
2
|
Quartz Combustion Tube, 12" Chamber, 1/4"E
|
|
PFA-SU4
|
3
|
Union, Straight, PFA, 1/4"
|
|
GP-605
|
2
|
Adapter, 12/5 Socket - 1/4", 90 deg
|
|
GP-607
|
5
|
Impinger, Midget, Modified, 12/5 Ball Joint O-ring
|
|
GP-609
|
4
|
Connector, U-Tube, Midget, 12/5
|
|
GP-611
|
12
|
Clamp, Pinch, SS, 12/5, No screw
|
|
M6-CB
|
1
|
Insulated Glassware Tray, SS, M6
|
|
UA-12
|
1
|
Umbilical Adapter, 12/5 Socket, Thermocouple
|
|
UC-025U
|
1
|
Umbilical, Connection Box, 25`, Low Flow
|
|
UNI-VOS-ACD
|
1
|
Low Flow Console, Digital DGM
|
