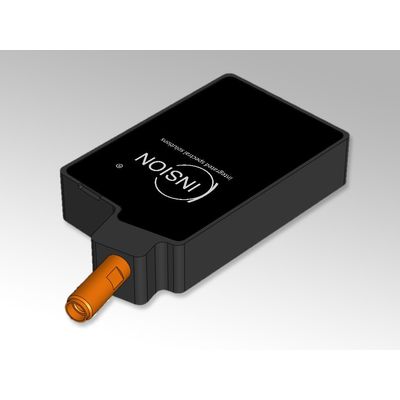

INSION - Model UV/VIS -Micro Spectrometer

Spectral Range:350 - 850 nm (330 – 1050 nm accessible); Fiber:Ø 300 / 330 µm; NA = 0.22; Spectral Resolution:< 10 nmFWHM / 3.5 nmPixel; Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30); Spectral Accuracy:2 nm (typ. 1 nm); Sensitivity:> 65 E12 cts x nm / Ws at 650 nm; Signal to Noise Ratio:≥ 5000 at Tintergration = 2 ms; Dynamic Range:> 5.000.
