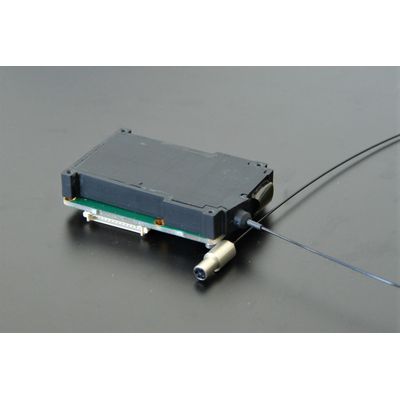

INSION - Model aMSM UV VIS SENS -Micro Spectrometer

Spectral Range:350 - 850 nm (270 – 1070 nm accessible); Fiber:Ø 300 / 330 µm; NA = 0.22; Spectral Resolution:Typ. 8 nmFWHM / 1.96 nmPixel; HR Version:Typ. 3-4 nmFWHM / 0.98 nmPixel; Stray light Attenuation:> 17 dB with GG495 at 470 nm (30 dB using SC30); Spectral Accuracy:typ. 1 nm; Sensitivity:> 19 E15 (HR: > 2.5 E15) cts x nm / Ws at 650 nm; Signal to Noise Ratio:≥ 1000 at Tintergration = 0.25 ms; Dynamic Range:> 5.000.
