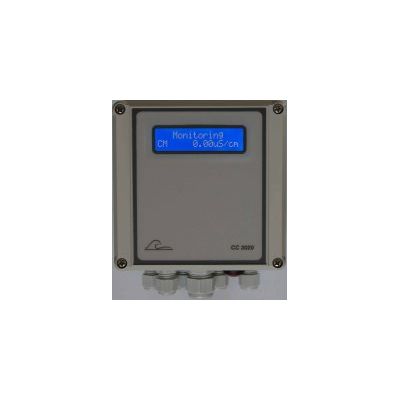

Model CC3020 -Microprocessor Controller Unit
The unit type CC3020 is a controller for full automatic monitoring of the conductivity and eventually starting a regeneration through an external device. The controller is equipped with an conductivity meter without temperature meter. Adaptable to user specific requirements by built-in programmable options. The programmed configuration will be stored into non volatile memory and therefore not be affected by power loss.
Most popular related searches
flushing valve
automatic monitoring
conductivity monitoring
temperature meter
site monitoring
alarm reporting
conductivity controller
- User operated programming using double row of illuminated LCD display.
- Display text in English, French, German or Dutch.
- Adaption to user specific requirements by means of options programmable on site
- 4 stages : Monitoring, Pre Flush, Regeneration wait, Regeneration, Flush, Flush alarm
- Extensive status report facility using information button.
- 1 inputs : regeneration busy
- 2 powered relay outputs : Flush valve (fused 8A), Alarm (fused 8A).
- 1 relay output (dry contact): Regeneration start.
- Secure from power failure as all data is stored long-term without battery.
- Efficient micro controller with watchdog, illegal operation code and cycle monitoring.
- Safeguarded from EMC by galvanic separation between microcontroller and in- and output circuits and also by additional interference suppression filter
- Available for wall-mounting.
- Available (input /output) : 12VDC/12VDC, 24VDC/24VDC, 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC
