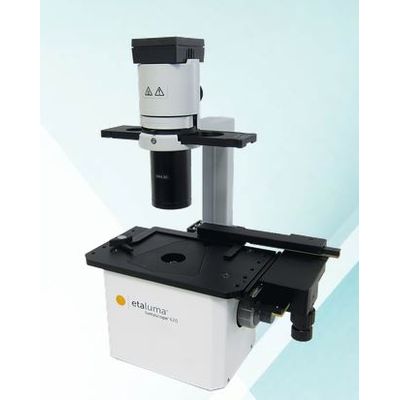

Etaluma - Model LS620 - Microscope

Etaluma - Model LS620 -Microscope

FromEtaluma, Inc.

SHARE

Use the LS620 to visualize and capture high resolution fluorescence images comparable to those from traditional, high-cost microscopes. LS Microscopes utilize LED light sources, Semrock filters, advanced optical engineering, and CMOS sensors to provide near diffraction-limited (theoretical maximum) resolution. Powered only by its USB connection, the LS620 easily records your photos, time-lapse series, and live videos directly to your computer. And its compact size enables working in challenging locations, including inside incubators, biological safety cabinets, and environmental control workstations. The LS620 provides blue, green and red fluorescence imaging at low cost for a wide variety of applications!

Most popular related searches

cell culture incubator

biological safety cabinet

fluorescence imaging

digital microscopy

biological safety

Fully functioning microscope empowers users to visualize cells from slides, microplates, flasks, or dishes
Versatile and compact design permits use inside cell culture incubators, tissue culture hoods, and environmental workstations
Robust software enables time-lapse studies over seconds, minutes, hours, or days
Modern LED and optical design lowers cost and eliminates cumbersome, difficult to maintain laser-driven and arc lamp systems
Power and control via USB connection facilitates rapid set up and easy use
Custom optimized filter set detects a range of blue, green and red fluorophores, including BFP, DAPI, FITC, Fluo-4, GFP, and mCherry
Advanced optics provide excellent resolution in ambient lighting conditions
Objective compatibility with standard lenses allows use of your own objectives
Optional Phase Contrast Accessory enhances visualization of unstained samples

The LS620 is the most powerful digital microscope offered anywhere at this price. Like the earlier LS600, it utilizes a Semrock Brightline® Pinkel filter set optimized for 405 nm, 488 nm, and 594 nm LED light sources. The 5-filter set is comprised of 3 exciting filters, 1 triple-band emitting filter, and 1 beam-splitting filter. The LS620 also contains the same CMOS sensor as the LS600 that is larger than the sensor used in LS520 and LS420.

Optics Blue, green & red fluorescence; brightfield
Phase Contrast Phase contrast optional
Objective Options 2.5x, 4x, 10x, 20x, 40x, 60x, and 100x(oil) magnification
Objective Compatibilities RMS-threaded, infinity corrected, 45 mm parfocal distance
Fluorescence Filters Channel 1: Excitation 370-410 nm; Emission 429-462 nm
Channel 2: Excitation 473-491 nm; Emission 502-561 nm
Channel 3: Excitation 580-598 nm; Emission 612-680 nm
Camera High Sensitivity Monochrome CMOS Sensor; C-mount
Image Formats JPG, BMP, TIF, GIF, or PNG
Image Size 100 x 100 to 1900 x 1900 pixels
Field of View 0.9 x 0.9 mm with 20x objective
Video Rates Up to 10 frames/second (fps); with reduced frame size, up to 30 fps
Manual XY Stage (optional) Sized for SBS footprint; other labware requires Labware Holders
Labware Holders (optional) Hold slides, 3 sizes Petri dishes, flasks; custom available
Computer Requirements Windows 7, 8, 8.1, 10
Automation Friendly SDK available
Power Requirements USB
Dimensions 24 cm W x 14 cm D x 16.5 cm H (9.4 in W x 5.5 in D x 6.5 in H)
Weight 3.2 kg (7.1 lb) (without accessories)
Operating Conditions 0°C - 42°C, 5% - 95% RH non-condensing
Warranty 1 year parts & labor
